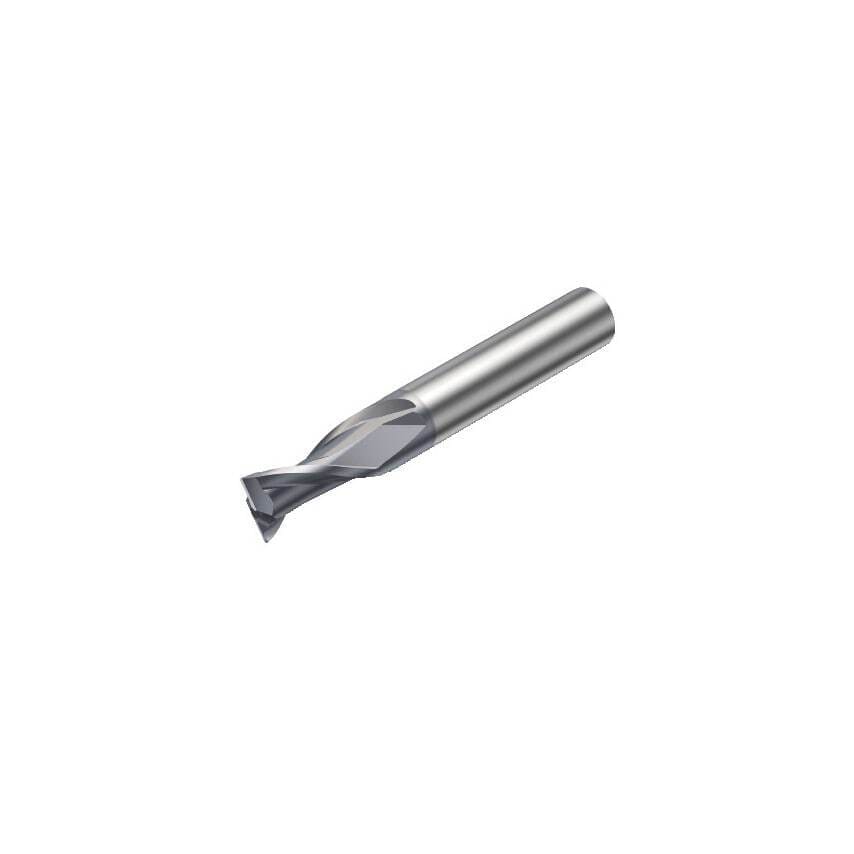

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | DIN 6527 L |
| CoroPak | 12.2 |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 25mm |
| Maximum Cutting Depth | 16.5mm |
| Maximum Ramping Angle | 9\u00b0 |
| Usable Length | 16.5mm |
| Unit Measured | Metric |
| Coating Process Type | PVD |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| Product Type | CoroMill Plura End Mill |
| Center Cutting Capability | Yes |
| Standards Met | DIN 6527 L |
| Shank Type | Cylindrical |
| Maximum Depth of Cut | 16.5mm |
| Finish/Coating | AlCrN |
| Body Half Taper Angle | 30\u00b0 |
| MFR Part No. | 26259647 |
| Through Hole Function Property | Yes |
| Grade | 1630 |
| Material | Solid Carbide |
| Functional Length | 72mm |
| Cutting Diameter | 9mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
