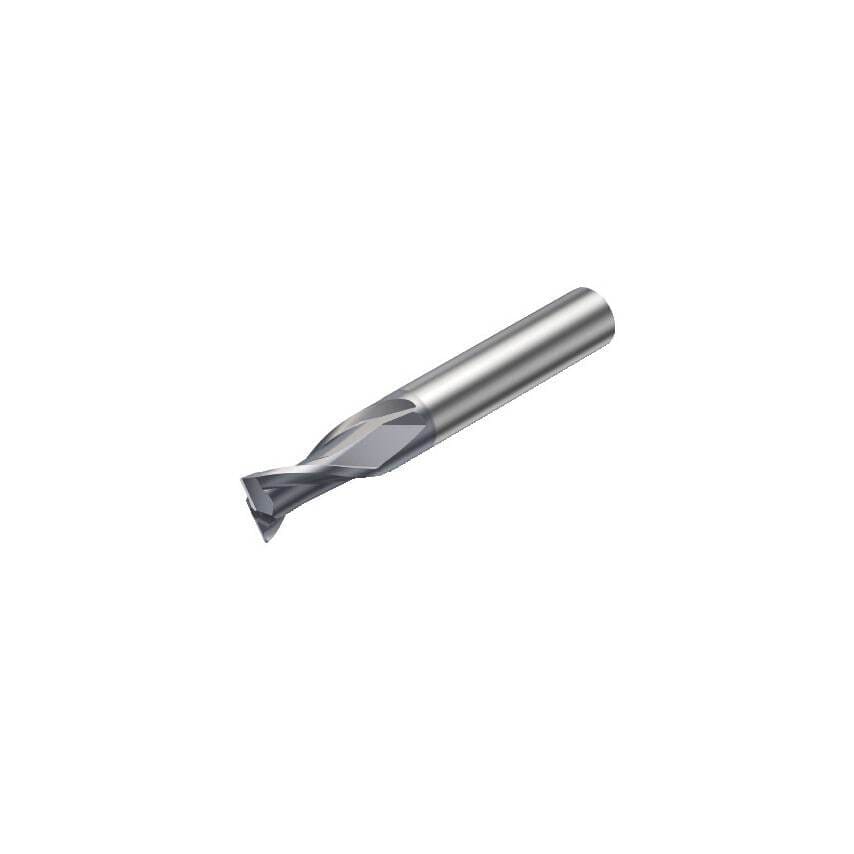

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 17900 1/min |
| Maximum Cutting Depth | 32.5mm |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 9\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Material | Solid Carbide |
| Standards Met | DIN 6527 L |
| Grade | 1630 |
| Finish/Coating | AlCrN |
| Cutting Diameter | 20mm |
| Product Type | CoroMill Plura End Mill |
| Basic Standard Group | DIN 6527 L |
| Weight | 0.41kg |
| Shank Type | Weldon |
| Usable Length | 32.5mm |
| Functional Length | 104mm |
| Maximum Depth of Cut | 32.5mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Connection Diameter | 20mm |
| MFR Part No. | 26259658 |
| Coating Type | AlCrN |
| Unit Measured | Metric |
