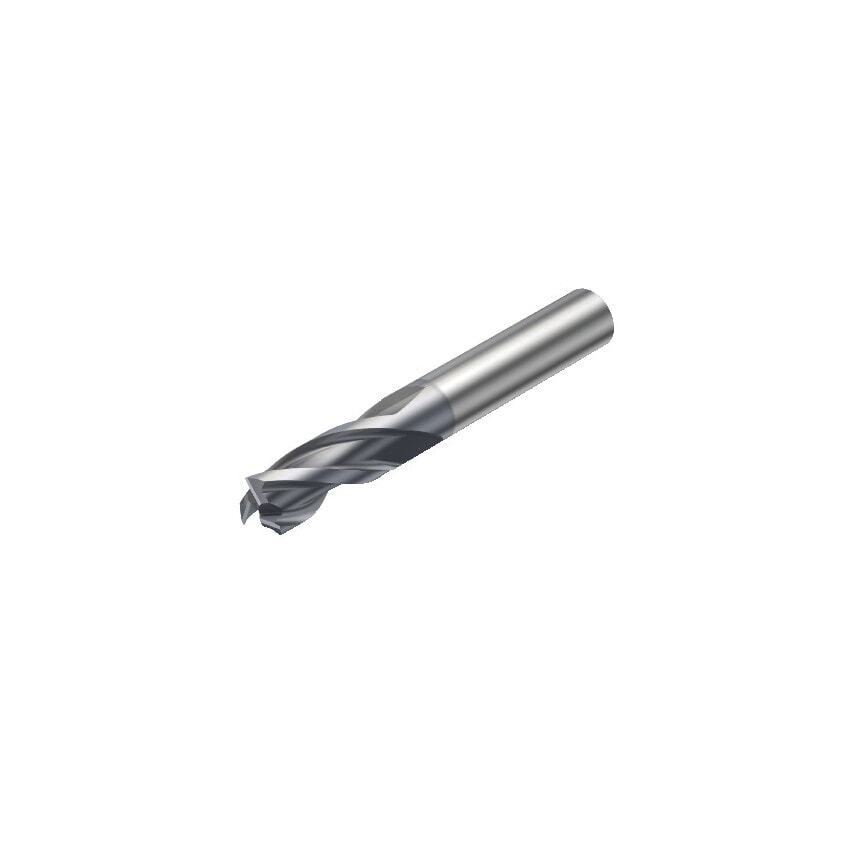

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Body Half Taper Angle | 30\u00b0 |
| Standards Met | DIN 6527 L |
| Product Type | CoroMill Plura End Mill |
| Finish/Coating | AlCrN |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 6.5mm |
| Maximum Cutting Depth | 13.5mm |
| Through Hole Function Property | Yes |
| Usable Length | 13.5mm |
| Basic Standard Group | DIN 6527 L |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 8\u00b0 |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| MFR Part No. | 26259691 |
| CoroPak | 12.2 |
| Connection Diameter | 8mm |
| Coating Type | AlCrN |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Functional Length | 63mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 13.5mm |
| Unit Measured | Metric |
| Grade | 1630 |
