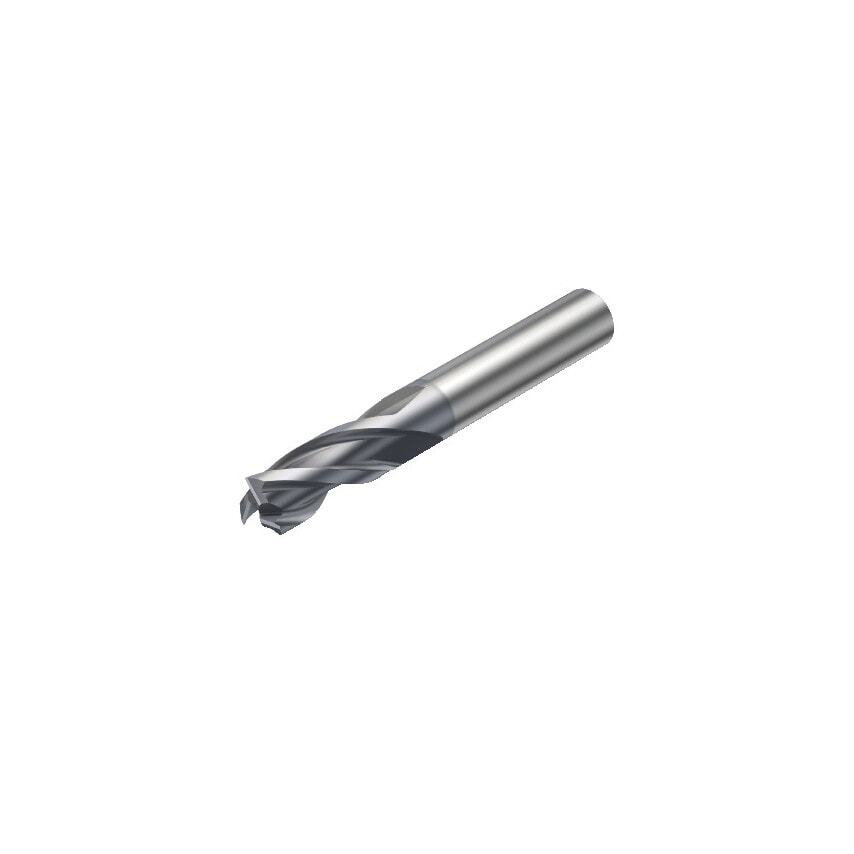

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 15mm |
| Functional Length | 92mm |
| Material | Carbide |
| Unit Measured | Metric |
| Coating Type | AlCrN |
| Shank Type | Cylindrical |
| Maximum Cutting Depth | 26.5mm |
| Grade | 1630 |
| Usable Length | 26.5mm |
| CoroPak | 12.2 |
| Weight | 0.24kg |
| Maximum Ramping Angle | 8\u00b0 |
| Product Type | CoroMill Plura End Mill |
| Rotational Speed Maximum | 26400 1/min |
| Body Half Taper Angle | 30\u00b0 |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | Yes |
| MFR Part No. | 26259688 |
| Finish/Coating | AlCrN |
| Maximum Depth of Cut | 26.5mm |
| Connection Diameter | 50mm |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN 6527 L |
| Standards Met | DIN 6527 L |
