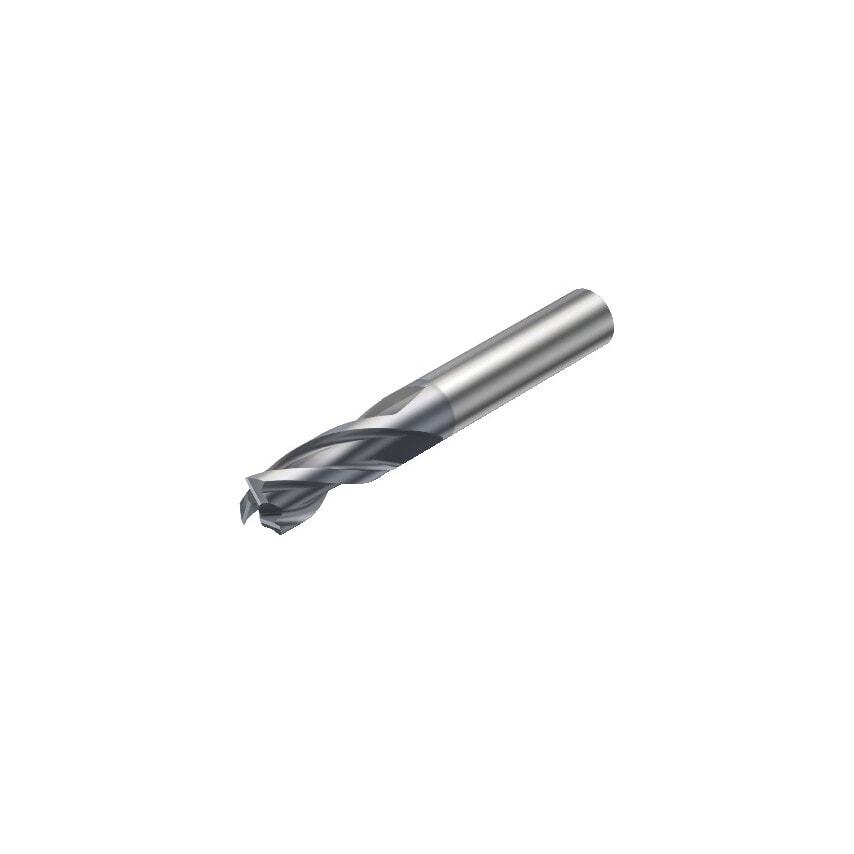

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| Connection Diameter | 40mm |
| Standards Met | DIN 6527 L |
| Maximum Cutting Depth | 22.5mm |
| Unit Measured | Metric |
| Functional Length | 83mm |
| Maximum Depth of Cut | 22.5mm |
| Body Half Taper Angle | 30\u00b0 |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Basic Standard Group | DIN 6527 L |
| Maximum Ramping Angle | 8\u00b0 |
| Usable Length | 22.5mm |
| Rotational Speed Maximum | 38400 1/min |
| Through Hole Function Property | Yes |
| Product Type | CoroMill Plura End Mill |
| MFR Part No. | 26259686 |
| Coolant Entry Style | Without Coolant |
| Finish/Coating | AlCrN |
| Cutting Diameter | 13mm |
| CoroPak | 12.2 |
| Weight | 0.17kg |
| Material | Solid Carbide |
| Grade | 1630 |
