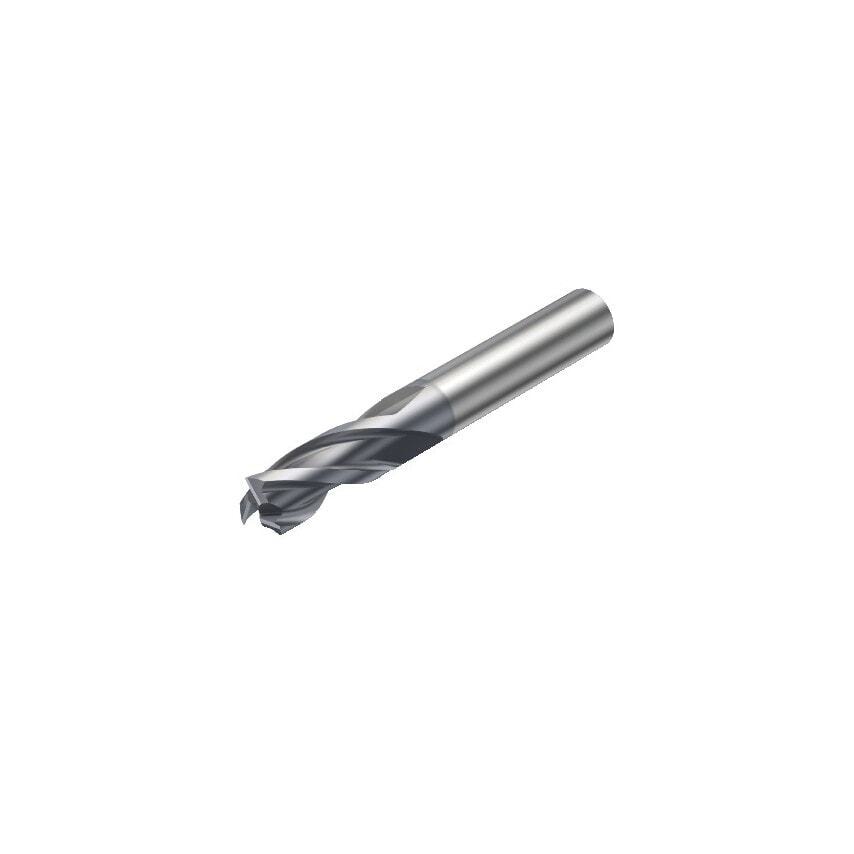

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Product Type | CoroMill Plura End Mill |
| Grade | 1630 |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 6527 L |
| Connection Diameter | 25mm |
| Standards Met | DIN 6527 L |
| MFR Part No. | 26259694 |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Cutting Diameter | 10mm |
| Center Cutting Capability | Yes |
| Coating Type | AlCrN |
| Finish/Coating | AlCrN |
| Material | Solid Carbide |
| Functional Length | 72mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 8\u00b0 |
| Usable Length | 19.5mm |
| Maximum Depth of Cut | 19.5mm |
| Shank Type | Weldon |
| CoroPak | 12.2 |
| Maximum Cutting Depth | 19.5mm |
| Rotational Speed Maximum | 80000 1/min |
