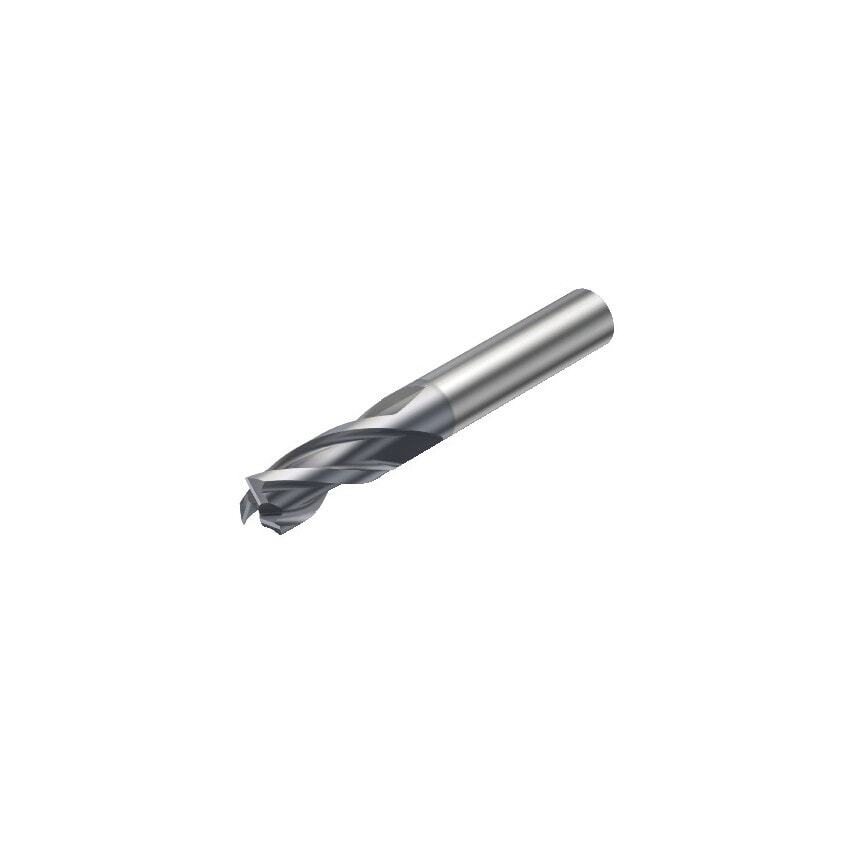

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Finish/Coating | AlCrN |
| Maximum Ramping Angle | 8\u00b0 |
| Maximum Cutting Depth | 13.5mm |
| Product Type | CoroMill Plura End Mill |
| Maximum Depth of Cut | 13.5mm |
| Coating Process Type | PVD |
| Cutting Diameter | 7mm |
| Center Cutting Capability | Yes |
| Standards Met | DIN 6527 L |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| CoroPak | 12.2 |
| Functional Length | 63mm |
| Weight | 47.8g |
| Grade | 1630 |
| Usable Length | 13.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | AlCrN |
| Connection Diameter | 8mm |
| Shank Type | Cylindrical |
| Coolant Entry Style | Without Coolant |
| Body Half Taper Angle | 30\u00b0 |
| Basic Standard Group | DIN 6527 L |
| MFR Part No. | 26259669 |
| Material | Solid Carbide |
