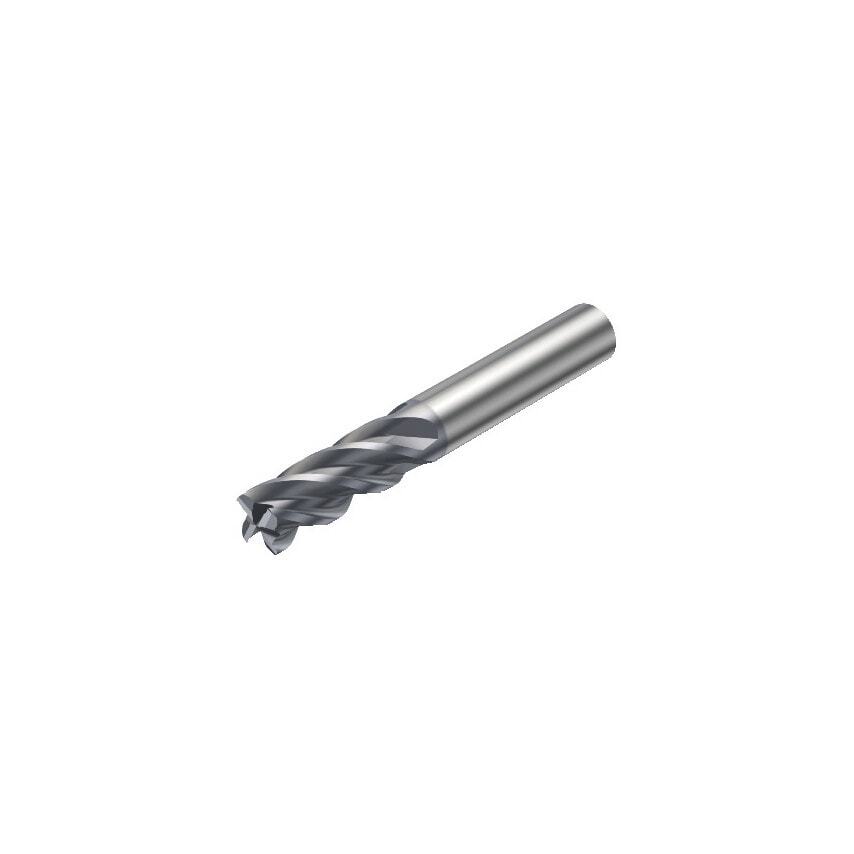

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 63mm |
| Coating Type | AlCrN |
| Coating Process Type | PVD |
| Grade | 1630 |
| Basic Standard Group | DIN 6527 L |
| Maximum Cutting Depth | 16.5mm |
| Connection Diameter | 100.2mm |
| MFR Part No. | 26259728 |
| Cutting Diameter | 6.5mm |
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 12.2 |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |
| Shank Type | Cylindrical |
| Finish/Coating | AlCrN |
| Maximum Depth of Cut | 16.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | CoroMill Plura End Mill |
| Usable Length | 16.5mm |
| Standards Met | DIN 6527 L |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| Body Half Taper Angle | 30\u00b0 |
| Center Cutting Capability | Yes |
