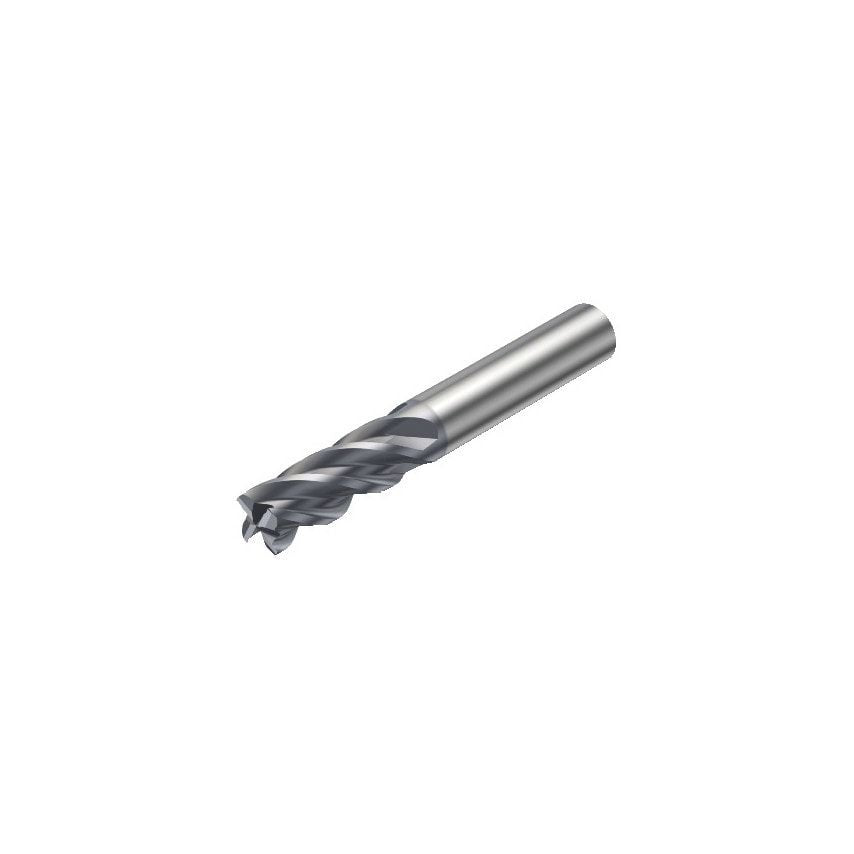

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | DIN 6527 L |
| MFR Part No. | 26259719 |
| Coolant Entry Style | Without Coolant |
| Functional Length | 92mm |
| Shank Type | Cylindrical |
| Grade | 1630 |
| Coating Type | AlCrN |
| Finish/Coating | AlCrN |
| Unit Measured | Metric |
| Material | Carbide |
| Connection Diameter | 16mm |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Rotational Speed Maximum | 22800 1/min |
| CoroPak | 12.2 |
| Maximum Cutting Depth | 32.5mm |
| Center Cutting Capability | Yes |
| Usable Length | 32.5mm |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 32.5mm |
| Weight | 251.4g |
| Standards Met | DIN 6527 L |
| Cutting Diameter | 16mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
