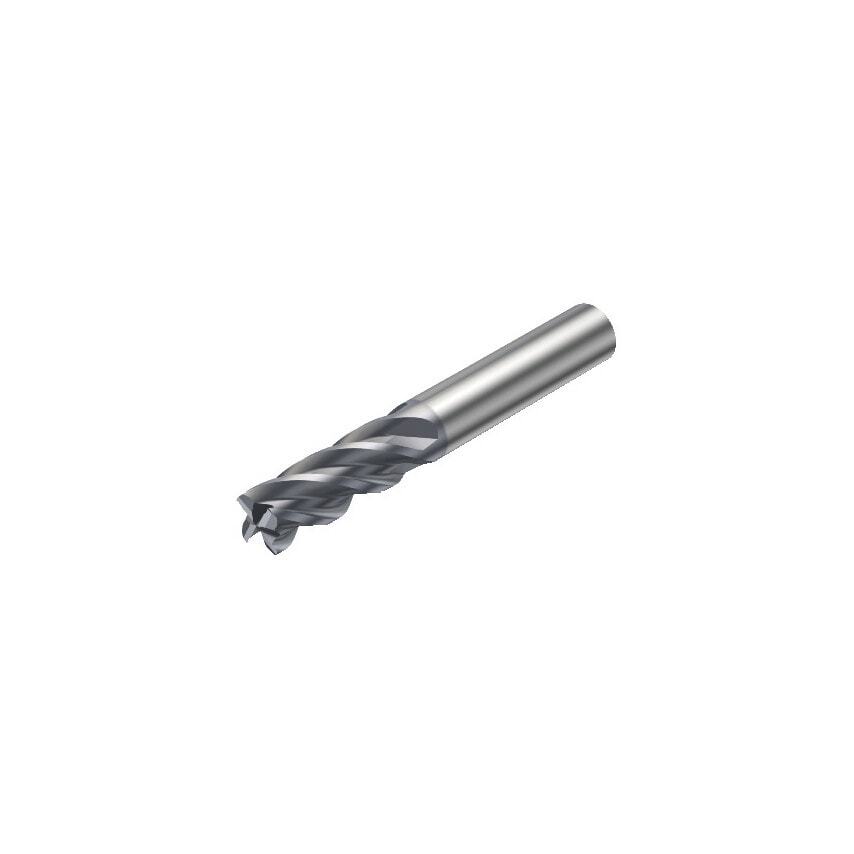

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26259734 |
| Center Cutting Capability | Yes |
| Product Type | CoroMill Plura End Mill |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 19.5mm |
| Maximum Cutting Depth | 19.5mm |
| Body Half Taper Angle | 30\u00b0 |
| CoroPak | 12.2 |
| Shank Type | Cylindrical |
| Basic Standard Group | DIN 6527 L |
| Standards Met | DIN 6527 L |
| Finish/Coating | AlCrN |
| Coating Type | AlCrN |
| Unit Measured | Metric |
| Connection Diameter | 25mm |
| Rotational Speed Maximum | 72600 1/min |
| Maximum Ramping Angle | 5\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 72mm |
| Grade | 1630 |
| Cutting Diameter | 9mm |
| Coating Process Type | PVD |
| Usable Length | 19.5mm |
| Through Hole Function Property | Yes |
