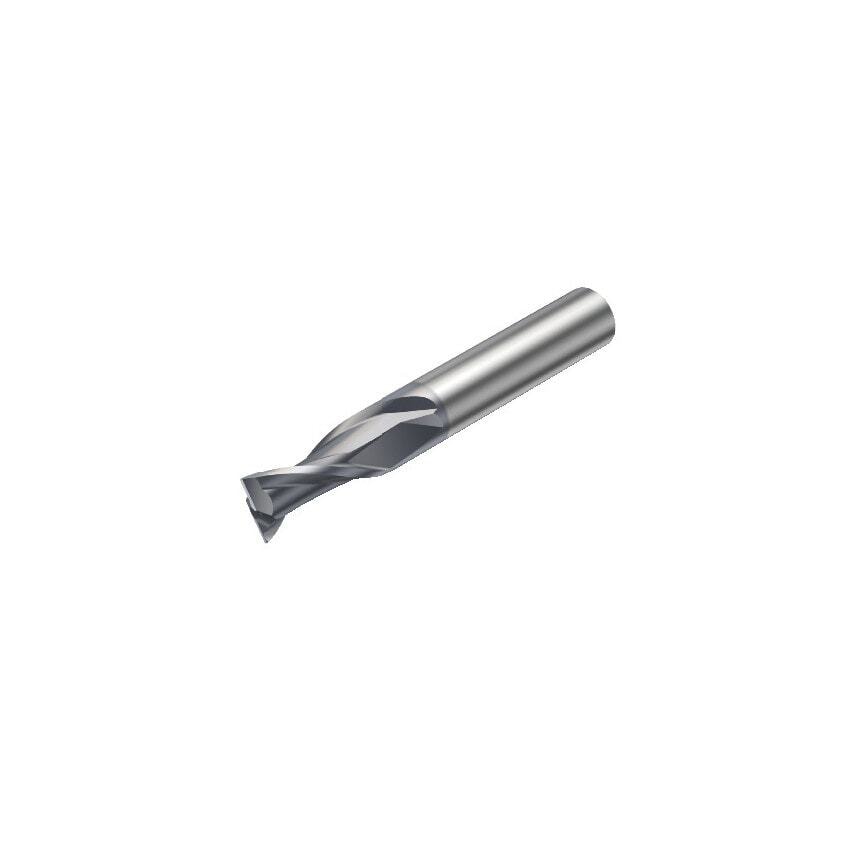

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 38.5mm |
| MFR Part No. | 26259769 |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 8\u00b0 |
| Grade | 1630 |
| Functional Length | 104mm |
| Maximum Depth of Cut | 38.5mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Connection Diameter | 80mm |
| Rotational Speed Maximum | 17900 1/min |
| Coating Type | AlCrN |
| Cutting Diameter | 20mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Center Cutting Capability | Yes |
| Basic Standard Group | Coromant |
| Unit Measured | Metric |
| CoroPak | 12.2 |
| Product Type | CoroMill Plura End Mill |
| Maximum Cutting Depth | 38.5mm |
| Weight | 0.39kg |
| Shank Type | Cylindrical |
| Material | Carbide |
| Finish/Coating | AlCrN |
