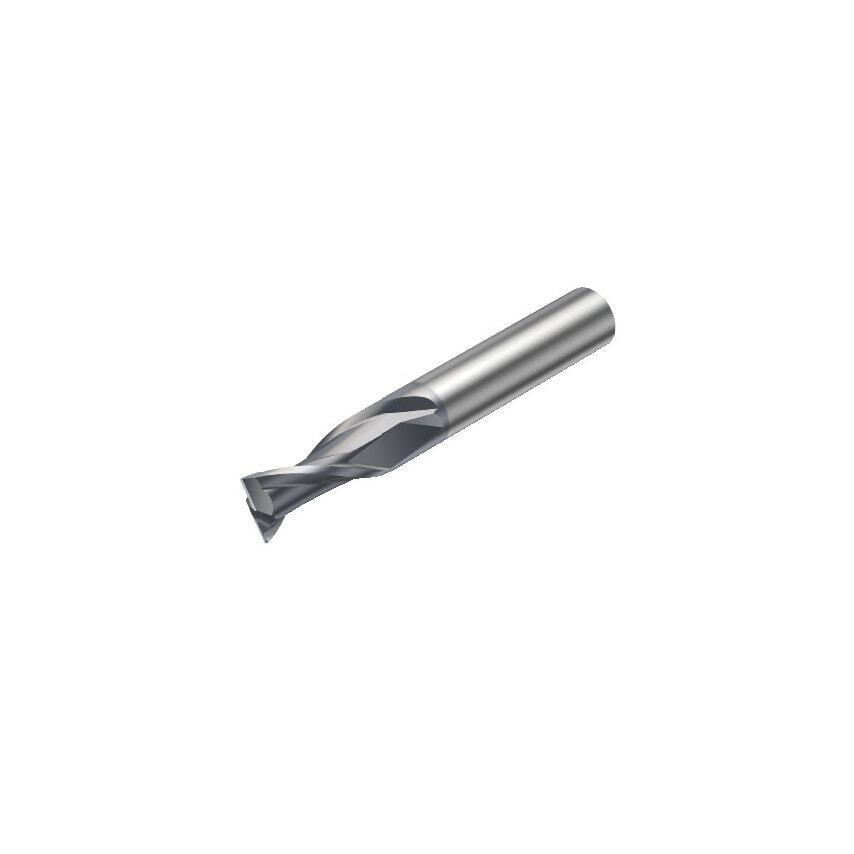

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 19.5mm |
| Product Type | CoroMill Plura End Mill |
| MFR Part No. | 26259783 |
| Maximum Depth of Cut | 19.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 12.2 |
| Cutting Diameter | 8mm |
| Material | Solid Carbide |
| Grade | 1630 |
| Standards Met | COROMANT |
| Maximum Ramping Angle | 8\u00b0 |
| Rotational Speed Maximum | 80000 1/min |
| Basic Standard Group | Coromant |
| Functional Length | 63mm |
| Usable Length | 19.5mm |
| Coolant Entry Style | Without Coolant |
| Finish/Coating | PVD |
| Connection Diameter | 100.2mm |
| Coating Process Type | PVD |
| Shank Type | Weldon |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Coating Type | AlCrN |
| Center Cutting Capability | Yes |
