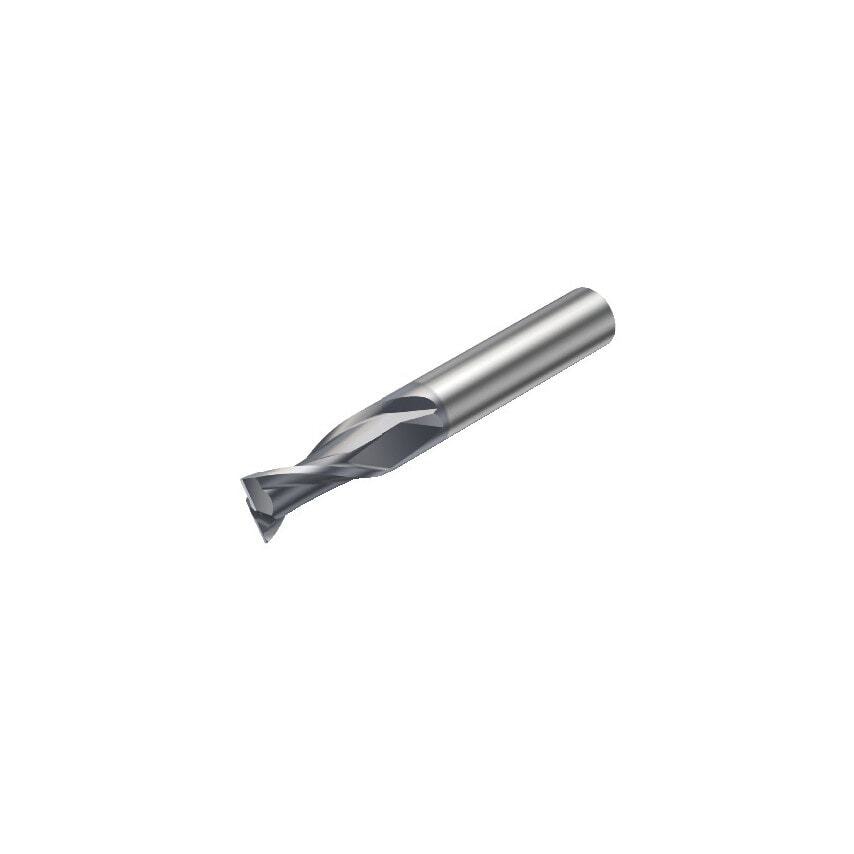

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Usable Length | 19.5mm |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Product Type | CoroMill Plura End Mill |
| Grade | 1630 |
| Connection Diameter | 100.2mm |
| Through Hole Function Property | Yes |
| Finish/Coating | AlCrN |
| Coating Type | AlCrN |
| Center Cutting Capability | Yes |
| MFR Part No. | 26259760 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Ramping Angle | 8\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Basic Standard Group | Coromant |
| Body Half Taper Angle | 30\u00b0 |
| Shank Type | Cylindrical |
| Functional Length | 63mm |
| Maximum Cutting Depth | 19.5mm |
| Coating Process Type | PVD |
| Cutting Diameter | 7mm |
| Maximum Depth of Cut | 19.5mm |
| Standards Met | COROMANT |
