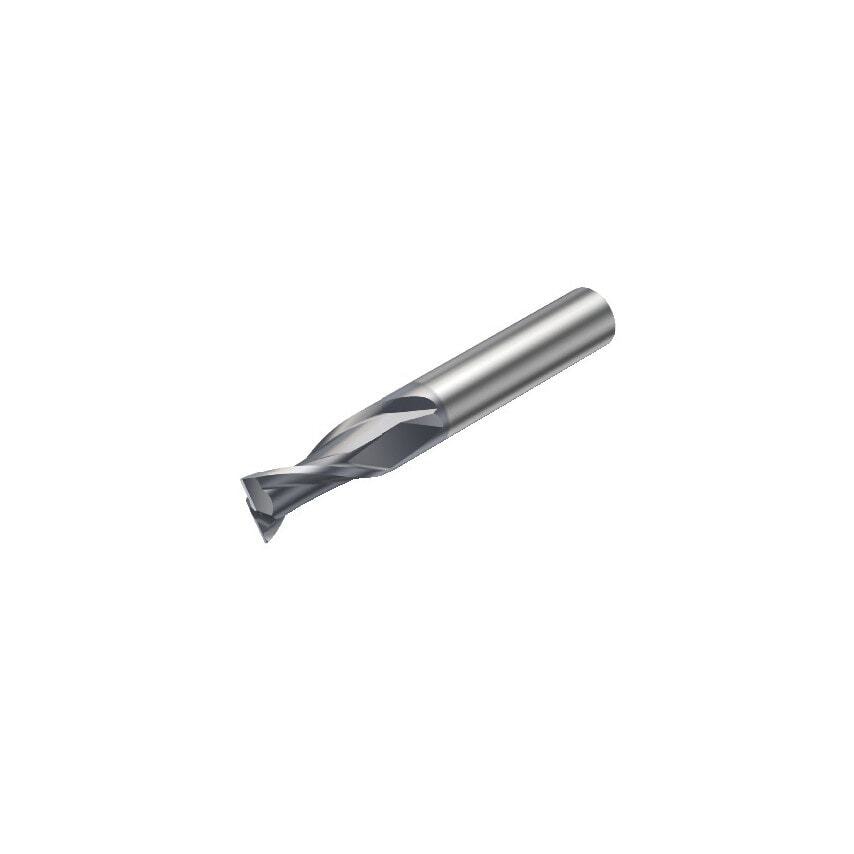

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | Coromant |
| Grade | 1630 |
| Product Type | CoroMill Plura End Mill |
| Connection Diameter | 10mm |
| Maximum Ramping Angle | 8\u00b0 |
| Through Hole Function Property | Yes |
| Coating Type | AlCrN |
| Unit Measured | Metric |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 22.5mm |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 22.5mm |
| Material | Carbide |
| MFR Part No. | 26259770 |
| Functional Length | 72mm |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 80000 1/min |
| Finish/Coating | AlCrN |
| Center Cutting Capability | Yes |
| CoroPak | 12.2 |
| Usable Length | 22.5mm |
| Coating Process Type | PVD |
| Cutting Diameter | 10mm |
| Shank Type | Weldon |
