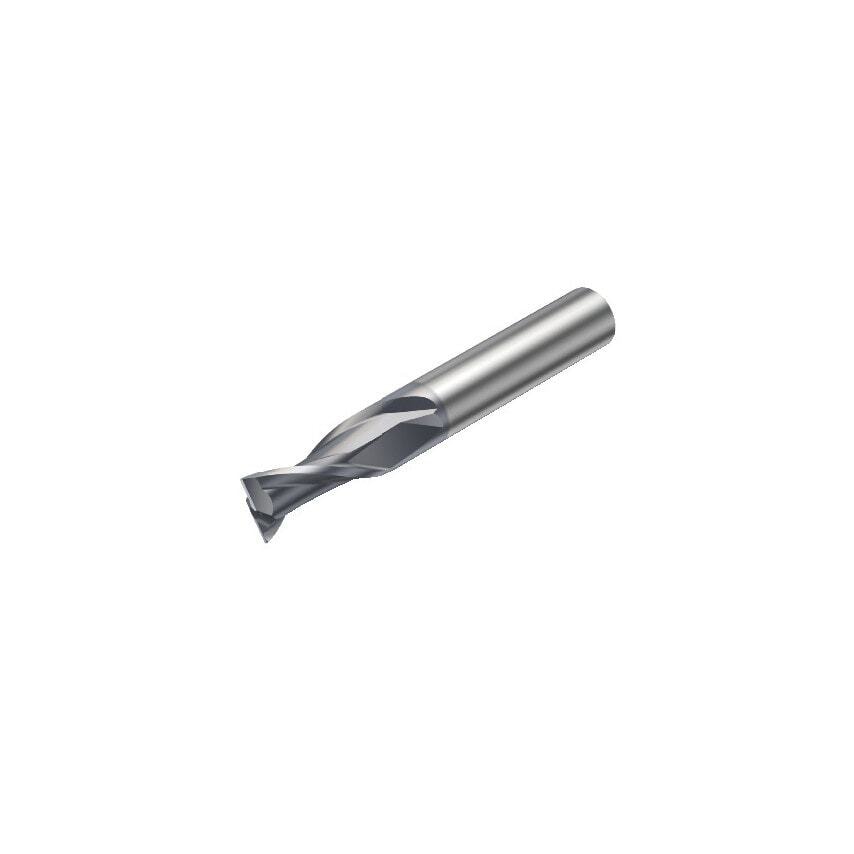

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Depth of Cut | 22.5mm |
| Finish/Coating | AlCrN |
| Coating Process Type | PVD |
| MFR Part No. | 26259756 |
| Coating Type | AlCrN |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Usable Length | 22.5mm |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 80000 1/min |
| Product Type | CoroMill Plura End Mill |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 72mm |
| Grade | 1630 |
| Maximum Ramping Angle | 8\u00b0 |
| Unit Measured | Metric |
| Cutting Diameter | 10mm |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Connection Diameter | 25mm |
| Maximum Cutting Depth | 22.5mm |
| Standards Met | COROMANT |
