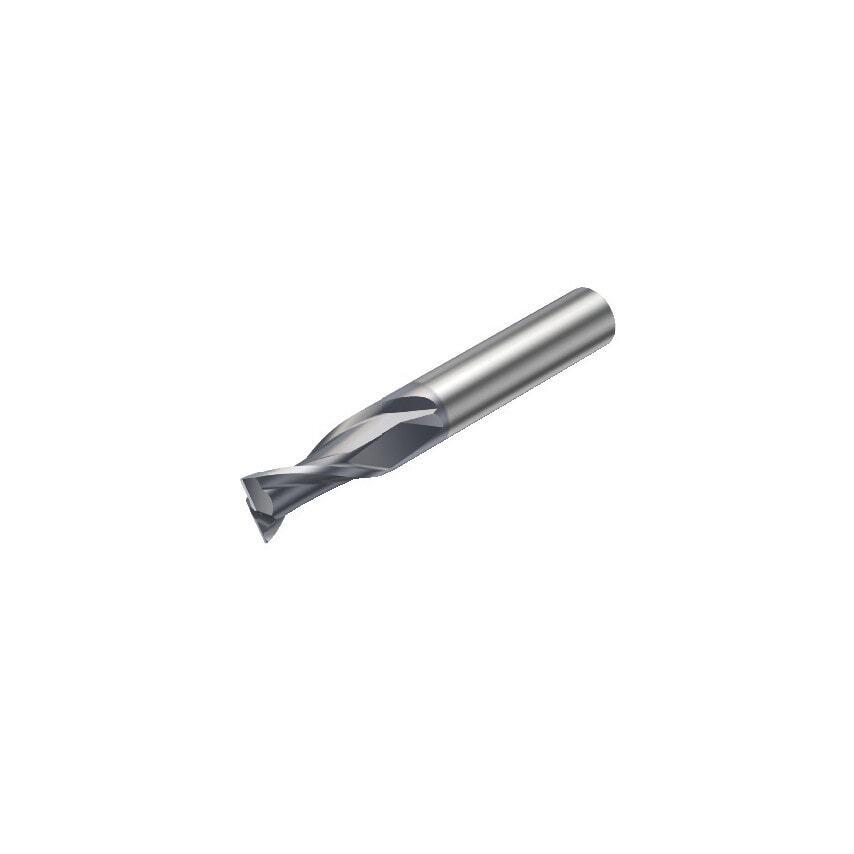

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 38.5mm |
| Center Cutting Capability | Yes |
| Maximum Ramping Angle | 8\u00b0 |
| Maximum Depth of Cut | 38.5mm |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Basic Standard Group | Coromant |
| Material | Solid Carbide |
| Coating Type | AlCrN |
| Functional Length | 104mm |
| Coolant Entry Style | Without Coolant |
| Finish/Coating | AlCrN |
| Rotational Speed Maximum | 17900 1/min |
| Connection Diameter | 80mm |
| Through Hole Function Property | Yes |
| Shank Type | Weldon |
| Product Type | CoroMill Plura End Mill |
| Cutting Diameter | 20mm |
| Weight | 0.4kg |
| Coating Process Type | PVD |
| MFR Part No. | 26259777 |
| Standards Met | COROMANT |
| Grade | 1630 |
| Usable Length | 38.5mm |
