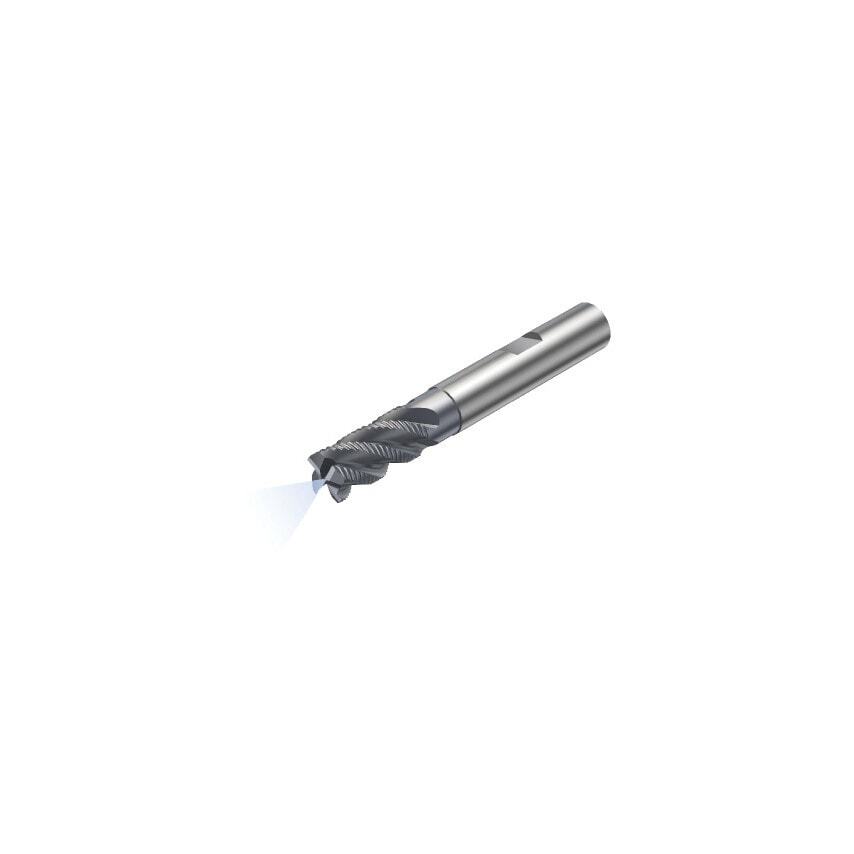

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Depth of Cut | 20mm |
| Standards Met | DIN 6527 K |
| Cutting Diameter | 20mm |
| CoroPak | 8.1 |
| Connection Diameter | 20mm |
| Unit Measured | Metric |
| MFR Part No. | 12329284 |
| Center Cutting Capability | No |
| Basic Standard Group | DIN 6527 K |
| Weight | 0.38kg |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Process Type | PVD |
| Finish/Coating | TiAlN |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 20mm |
| Material | Solid Carbide |
| Corner Radius | 0.4mm |
| Milling Application | Roughing |
| Through Hole Function Property | Yes |
| Usable Length | 40mm |
| Coating Type | TiAlN |
| Functional Length | 92mm |
| Coolant Entry Style | 1 |
| Grade | 1640 |
| ISO Cutting Tool Material | Coated WC or Cermet |
