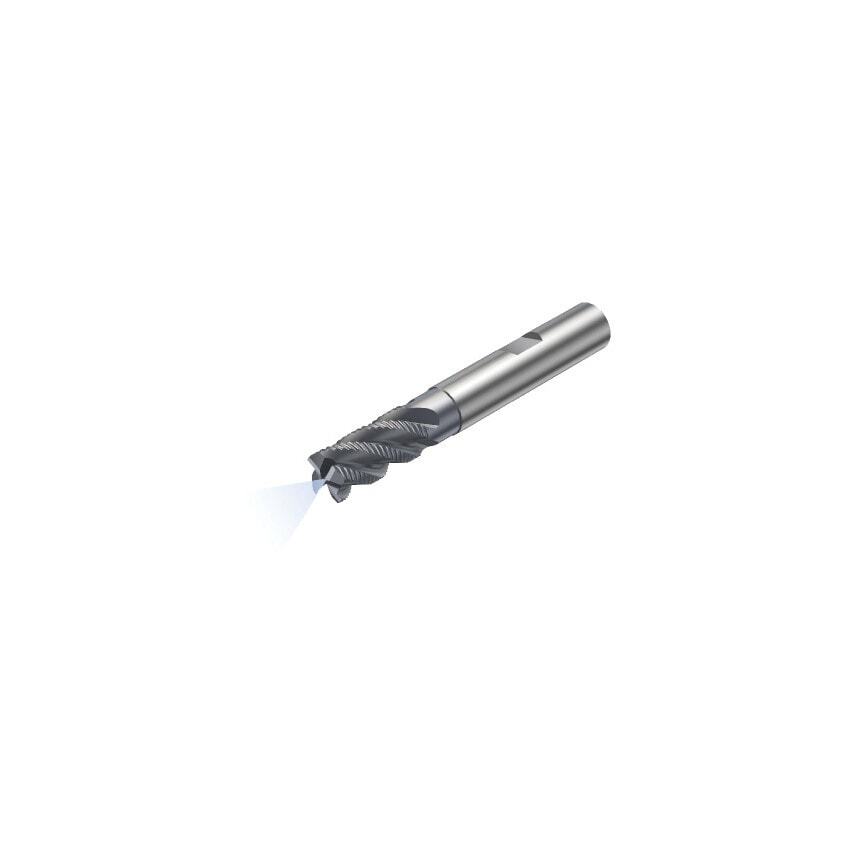

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 8.1 |
| Maximum Cutting Depth | 19mm |
| Usable Length | 25mm |
| Basic Standard Group | DIN 6527 L |
| Standards Met | DIN 6527 L |
| Maximum Depth of Cut | 19mm |
| Functional Length | 63mm |
| Coating Type | TiAlN |
| Center Cutting Capability | No |
| Corner Radius | 0.4mm |
| Unit Measured | Metric |
| Connection Diameter | 87.58mm |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| MFR Part No. | 12329376 |
| Grade | 1640 |
| Coolant Entry Style | 1 |
| Rotational Speed Maximum | 80000 1/min |
| Finish/Coating | TiAlN |
| Material | Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Milling Application | Roughing |
| Cutting Diameter | 8mm |
| Through Hole Function Property | Yes |
