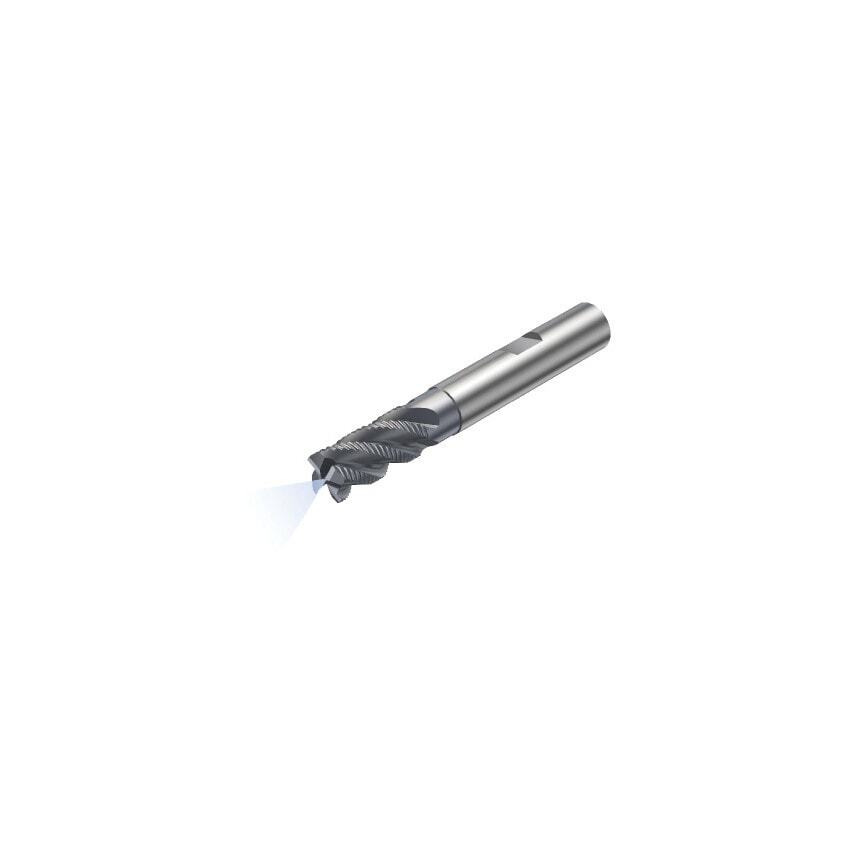

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 80000 1/min |
| Milling Application | Roughing |
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1640 |
| Coating Type | TiAlN |
| Connection Diameter | 12mm |
| Coolant Entry Style | 1 |
| Cutting Diameter | 12mm |
| Finish/Coating | TiAlN |
| Usable Length | 26mm |
| Corner Radius | 0.4mm |
| Coating Process Type | PVD |
| CoroPak | 8.1 |
| Weight | 0.12kg |
| Maximum Depth of Cut | 12mm |
| Standards Met | DIN 6527 K |
| Basic Standard Group | DIN 6527 K |
| Maximum Cutting Depth | 12mm |
| Center Cutting Capability | No |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 73mm |
| Unit Measured | Metric |
| Material | Solid Carbide |
| MFR Part No. | 12329306 |
| Through Hole Function Property | Yes |
