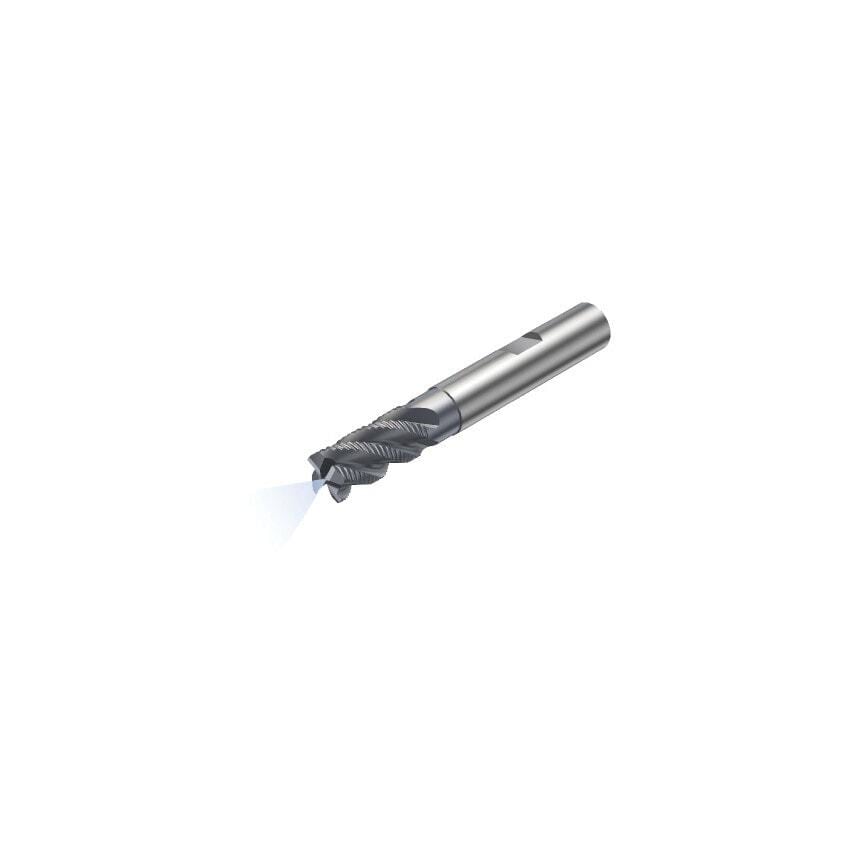

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Rotational Speed Maximum | 80000 1/min |
| Functional Length | 83mm |
| Finish/Coating | TiAlN |
| Coating Type | TiAlN |
| Grade | 1640 |
| Milling Application | Roughing |
| Maximum Depth of Cut | 26mm |
| Maximum Ramping Angle | 5\u00b0 |
| Unit Measured | Metric |
| Weight | 0.12kg |
| Usable Length | 36mm |
| Connection Diameter | 12mm |
| Cutting Diameter | 12mm |
| MFR Part No. | 12329413 |
| Material | Carbide |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| CoroPak | 8.1 |
| Maximum Cutting Depth | 26mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | No |
| Standards Met | DIN 6527 L |
| Coolant Entry Style | 1 |
| Basic Standard Group | DIN 6527 L |
| Corner Radius | 0.4mm |
