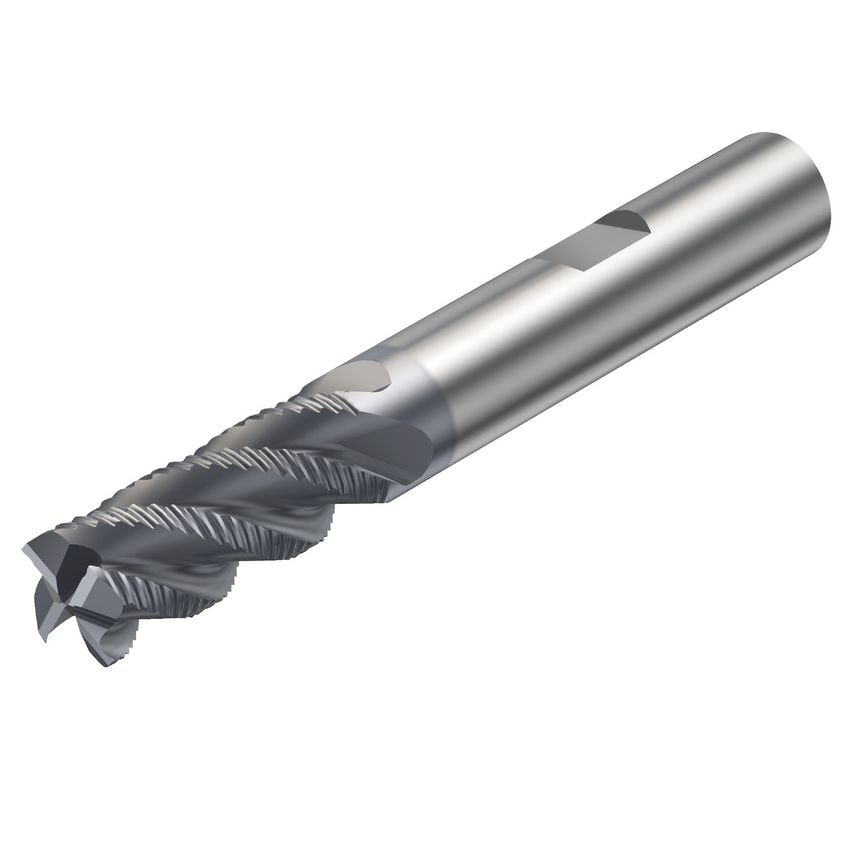

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

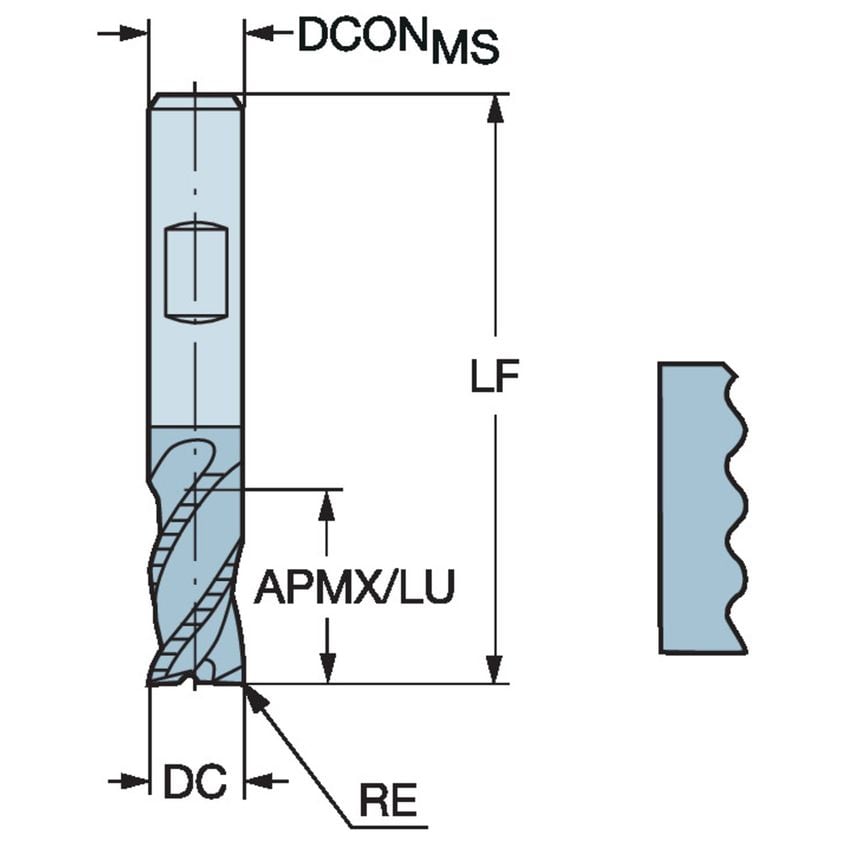

| Maximum Cutting Depth | 22mm |
| Material | Solid Carbide |
| Functional Length | 72mm |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 22mm |
| MFR Part No. | 11589443 |
| Center Cutting Capability | Yes |
| Coating Type | TiAlN |
| Standards Met | DIN 6527 L |
| Cutting Diameter | 10mm |
| Basic Standard Group | DIN 6527 L |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 3.2 |
| Unit Measured | Metric |
| Usable Length | 22mm |
| Coating Process Type | PVD |
| Corner Radius | 0.4mm |
| Finish/Coating | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Maximum Depth of Cut | 22mm |
| Grade | 1640 |
| Milling Application | Roughing |
