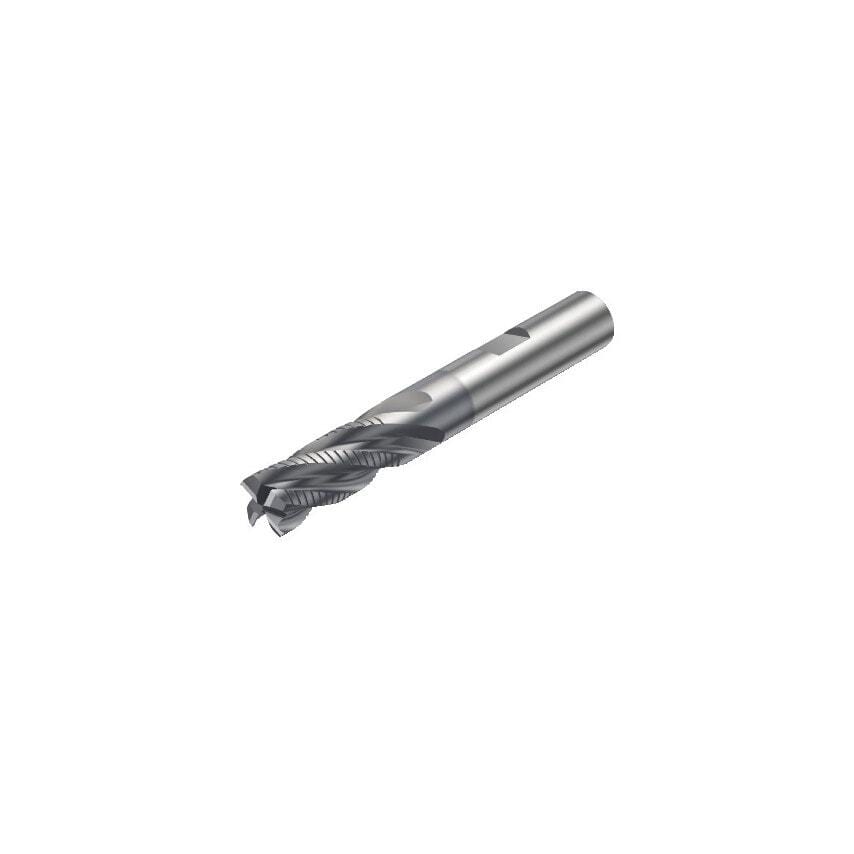

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Unit Measured | Metric |
| Basic Standard Group | DIN 6527 L |
| Maximum Cutting Depth | 38mm |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| CoroPak | 10.1 |
| Weight | 0.43kg |
| Coolant Entry Style | Without Coolant |
| Corner Radius | 4mm |
| MFR Part No. | 25847798 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | DIN 6527 L |
| Connection Diameter | 20mm |
| Milling Application | Roughing |
| Usable Length | 54mm |
| Maximum Depth of Cut | 38mm |
| Finish/Coating | TiAlN |
| Grade | 1640 |
| Center Cutting Capability | Yes |
| Maximum Ramping Angle | 3\u00b0 |
| Cutting Diameter | 20mm |
| Functional Length | 104mm |
