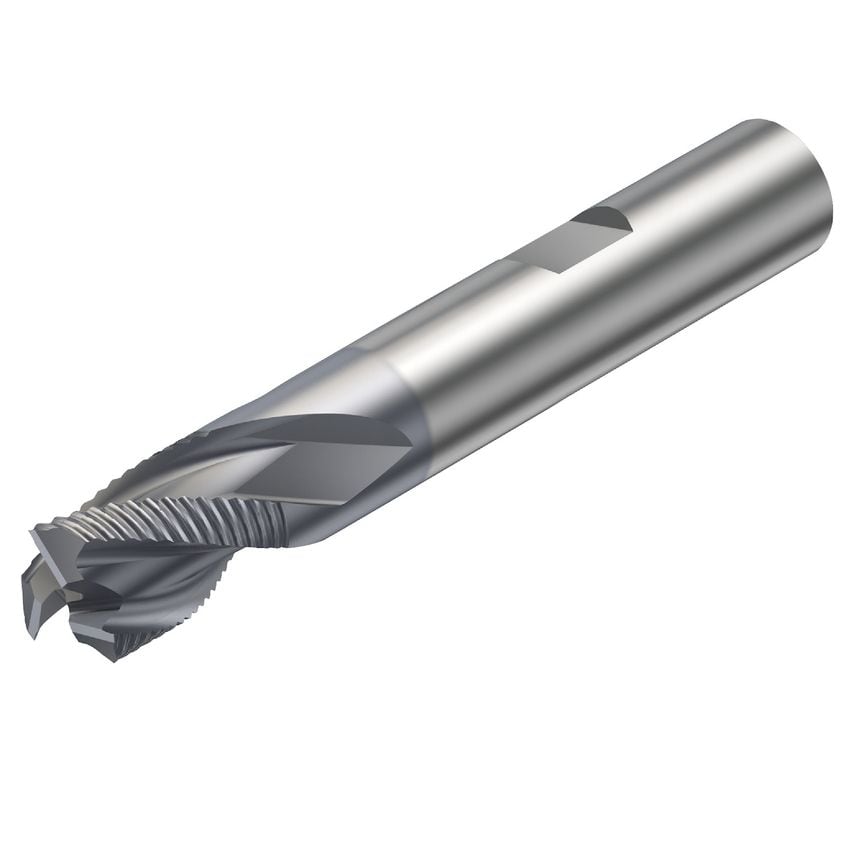

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 0.22kg |
| Cutting Diameter | 16mm |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 16mm |
| Functional Length | 82mm |
| CoroPak | 3.2 |
| Corner Radius | 0.4mm |
| Unit Measured | Metric |
| Basic Standard Group | DIN 6527 K |
| Standards Met | DIN 6527 K |
| Grade | 1640 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Cutting Depth | 16mm |
| Material | Carbide |
| Connection Diameter | 16mm |
| Center Cutting Capability | Yes |
| MFR Part No. | 11589406 |
| Usable Length | 16mm |
| Milling Application | Roughing |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 8\u00b0 |
| Coolant Entry Style | Without Coolant |
