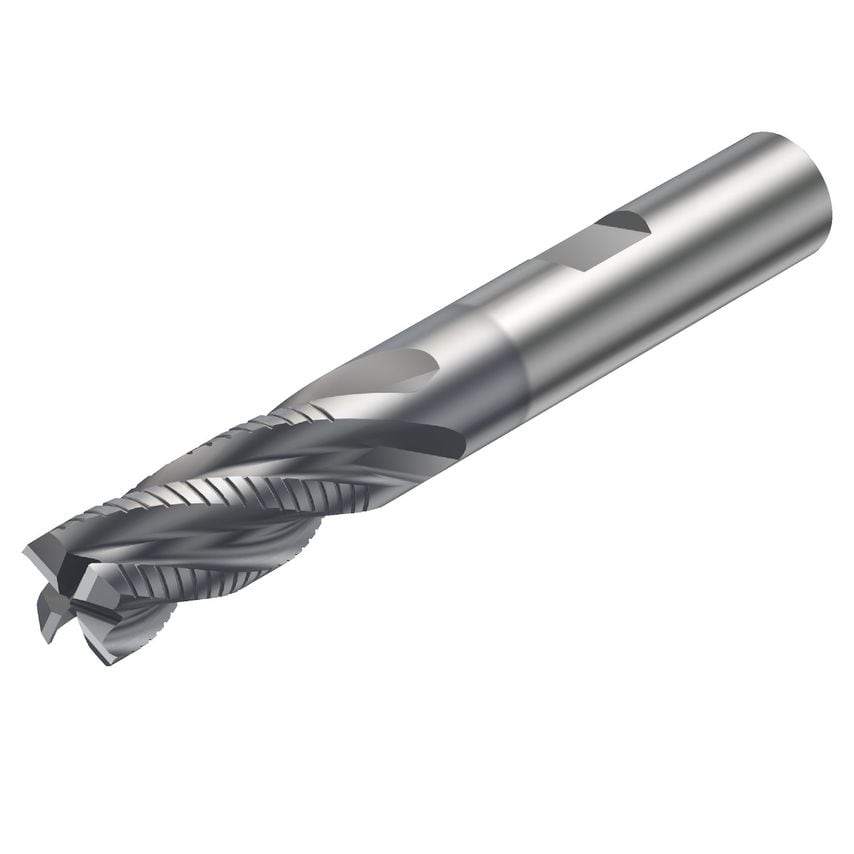

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Usable Length | 45mm |
| Maximum Cutting Depth | 45mm |
| Functional Length | 121mm |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Basic Standard Group | DIN 6527 L |
| Maximum Ramping Angle | 5\u00b0 |
| CoroPak | 3.1 |
| Weight | 0.74kg |
| Maximum Depth of Cut | 45mm |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| Grade | 1620 |
| Connection Diameter | 25mm |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | DIN 6527 L |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 11554443 |
| Coating Type | TiAlN |
| Cutting Diameter | 25mm |
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Milling Application | Roughing |
