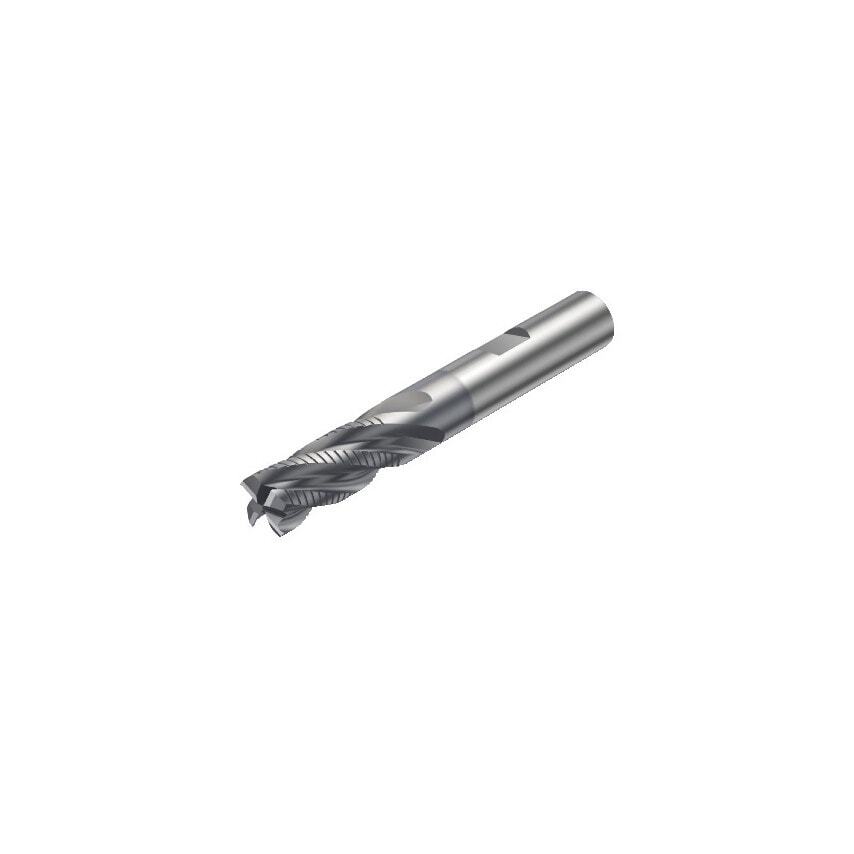

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 20mm |
| Through Hole Function Property | Yes |
| Grade | 1640 |
| Maximum Cutting Depth | 38mm |
| Corner Radius | 4mm |
| Connection Diameter | 20mm |
| Material | Solid Carbide |
| Maximum Depth of Cut | 38mm |
| Coating Type | TiAlN |
| Finish/Coating | TiAlN |
| Coating Process Type | PVD |
| Usable Length | 80mm |
| Center Cutting Capability | Yes |
| Milling Application | Roughing |
| Standards Met | COROMANT |
| CoroPak | 10.1 |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Weight | 0.54kg |
| MFR Part No. | 25847801 |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 130mm |
| Maximum Ramping Angle | 3\u00b0 |
