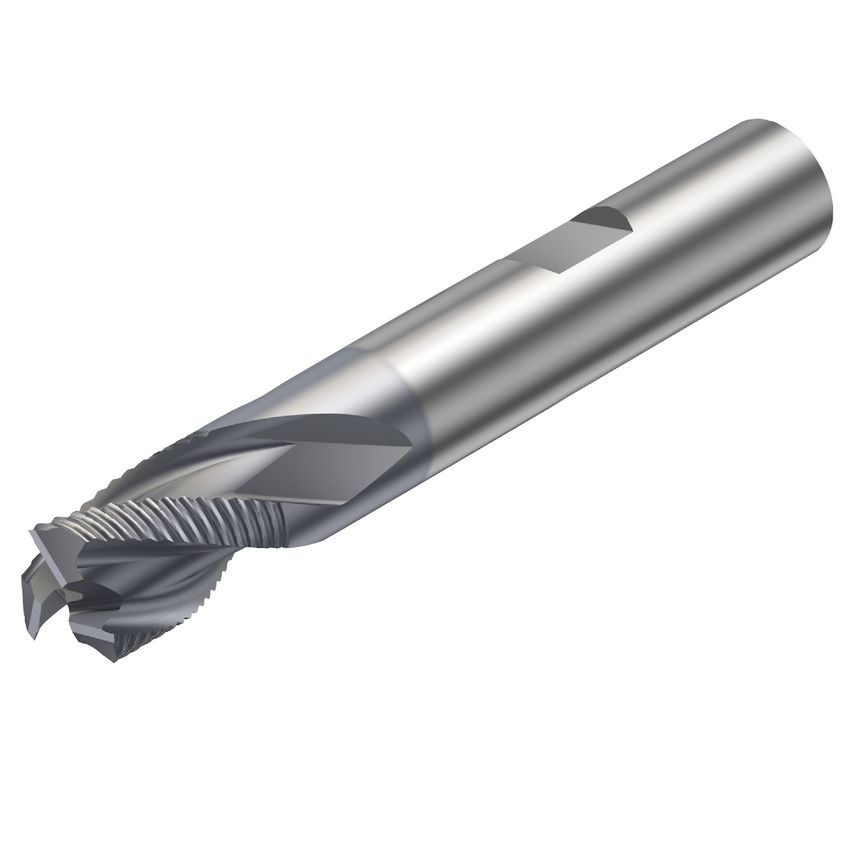

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Milling Application | Roughing |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Usable Length | 12mm |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| Maximum Cutting Depth | 12mm |
| CoroPak | 3.2 |
| Maximum Ramping Angle | 8\u00b0 |
| Through Hole Function Property | Yes |
| Standards Met | DIN 6527 K |
| Corner Radius | 0.4mm |
| Coating Type | TiAlN |
| Cutting Diameter | 12mm |
| Unit Measured | Metric |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1640 |
| MFR Part No. | 11589384 |
| Coating Process Type | PVD |
| Finish/Coating | TiAlN |
| Connection Diameter | 12mm |
| Functional Length | 73mm |
| Maximum Depth of Cut | 12mm |
| Basic Standard Group | DIN 6527 K |
| Weight | 116g |
| Center Cutting Capability | Yes |
