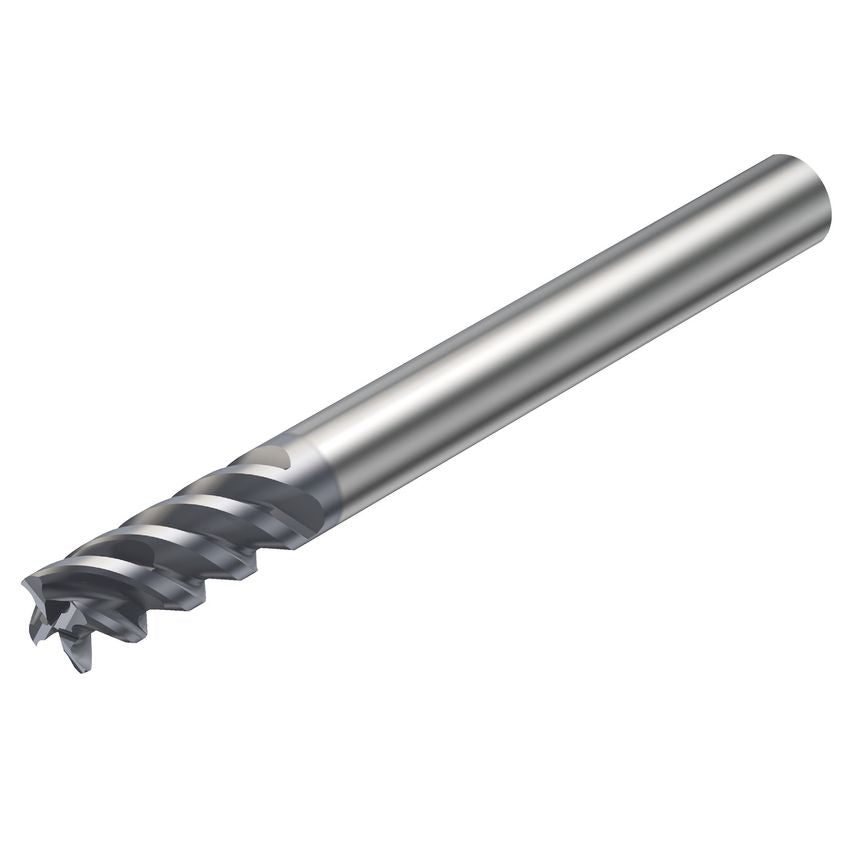

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| MFR Part No. | 11557475 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Connection Diameter | 1mm |
| Material | Solid Carbide |
| Rotational Speed Maximum | 80000 1/min |
| Product Type | Solid Carbide Endmill |
| Grade | 1630 |
| Coolant Entry Style | Without Coolant |
| Finish/Coating | TiAlN |
| Standards Met | COROMANT |
| Functional Length | 57mm |
| Maximum Depth of Cut | 13mm |
| Usable Length | 13mm |
| Center Cutting Capability | Yes |
| Basic Standard Group | Coromant |
| Cutting Diameter | 5mm |
| Maximum Cutting Depth | 13mm |
| CoroPak | 3.1 |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 8\u00b0 |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
