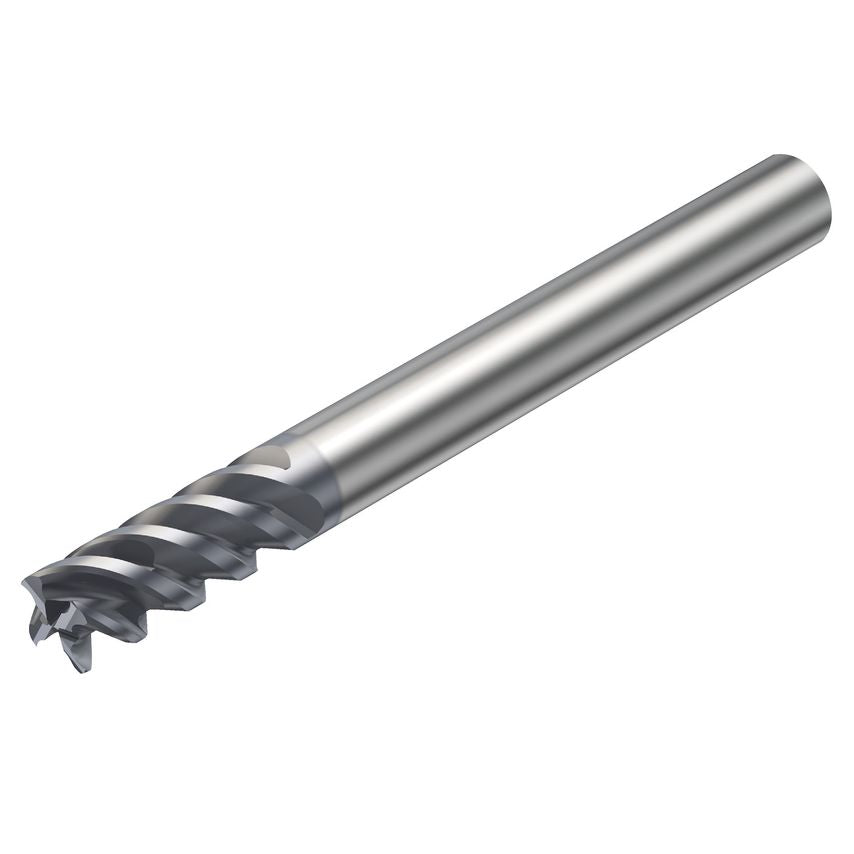

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 5\u00b0 |
| Weight | 0.23kg |
| Unit Measured | Metric |
| CoroPak | 3.1 |
| Connection Diameter | 40mm |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Functional Length | 104mm |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| Standards Met | COROMANT |
| Rotational Speed Maximum | 80000 1/min |
| Center Cutting Capability | Yes |
| Basic Standard Group | Coromant |
| Maximum Depth of Cut | 26mm |
| Usable Length | 26mm |
| Cutting Diameter | 14mm |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 26mm |
| Coolant Entry Style | Without Coolant |
| Product Type | Solid Carbide Endmill |
| Finish/Coating | TiAlN |
| Grade | 1630 |
| MFR Part No. | 11557523 |
