Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

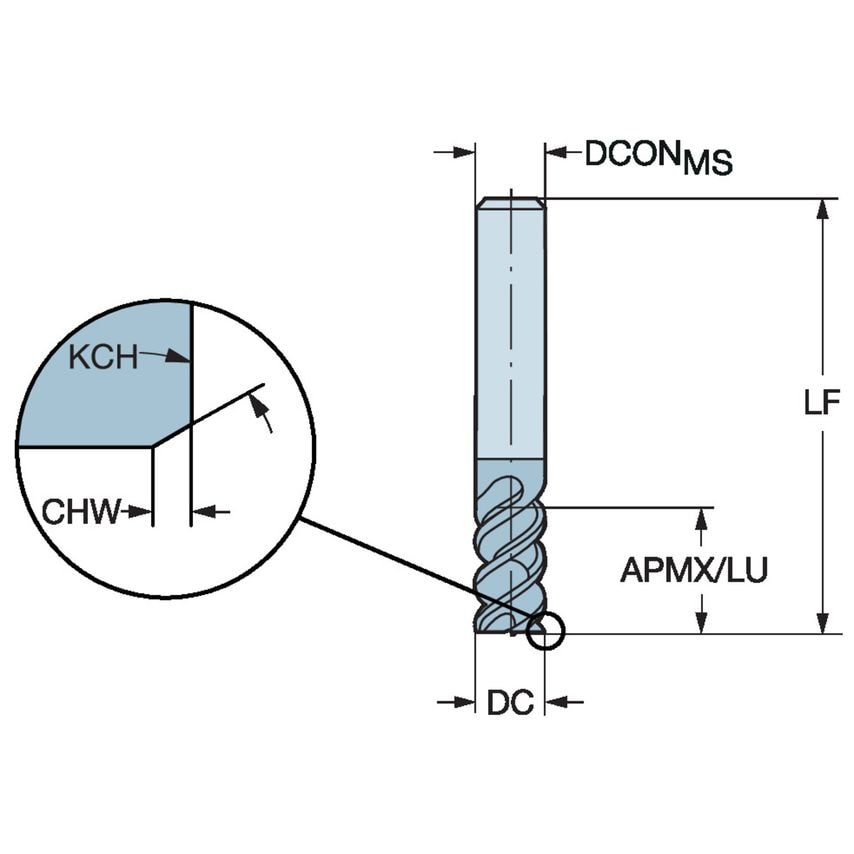

| Functional Length | 72mm |
| Grade | 1620 |
| Connection Diameter | 22mm |
| MFR Part No. | 11769623 |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | Yes |
| Weight | 85g |
| Rotational Speed Maximum | 80000 1/min |
| Basic Standard Group | DIN 6527 L |
| Unit Measured | Metric |
| Shank Type | Weldon |
| Maximum Ramping Angle | 5\u00b0 |
| Coating Type | TiAlN |
| Maximum Depth of Cut | 22mm |
| Through Hole Function Property | Yes |
| Usable Length | 22mm |
| Product Type | Solid Carbide Endmill |
| Coating Process Type | PVD |
| CoroPak | 4.1 |
| Maximum Cutting Depth | 22mm |
| Cutting Diameter | 10mm |
| Standards Met | DIN 6527 L |
| Finish/Coating | TiAlN |
