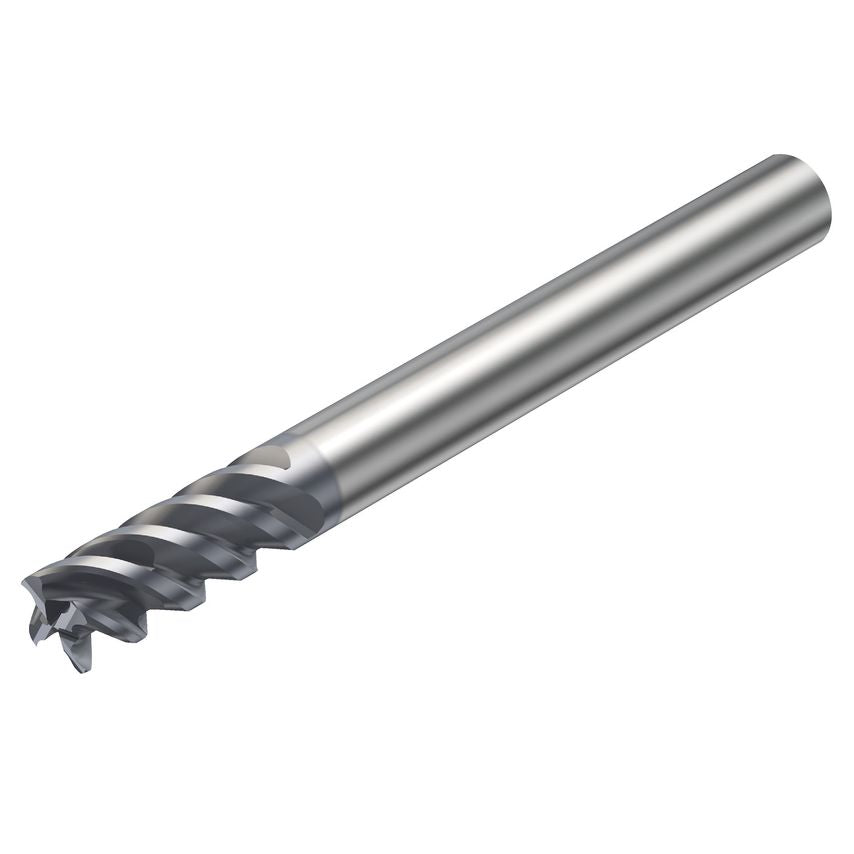

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Functional Length | 104mm |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | Yes |
| Unit Measured | Metric |
| Usable Length | 26mm |
| Rotational Speed Maximum | 80000 1/min |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Weight | 0.23kg |
| Material | Solid Carbide |
| Connection Diameter | 40mm |
| Finish/Coating | TiAlN |
| Maximum Cutting Depth | 26mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | Solid Carbide Endmill |
| Shank Type | Cylindrical |
| Maximum Depth of Cut | 26mm |
| Coating Type | TiAlN |
| Grade | 1620 |
| MFR Part No. | 11554605 |
| Standards Met | COROMANT |
| Basic Standard Group | Coromant |
| CoroPak | 3.1 |
| Cutting Diameter | 14mm |
| Through Hole Function Property | Yes |
