Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

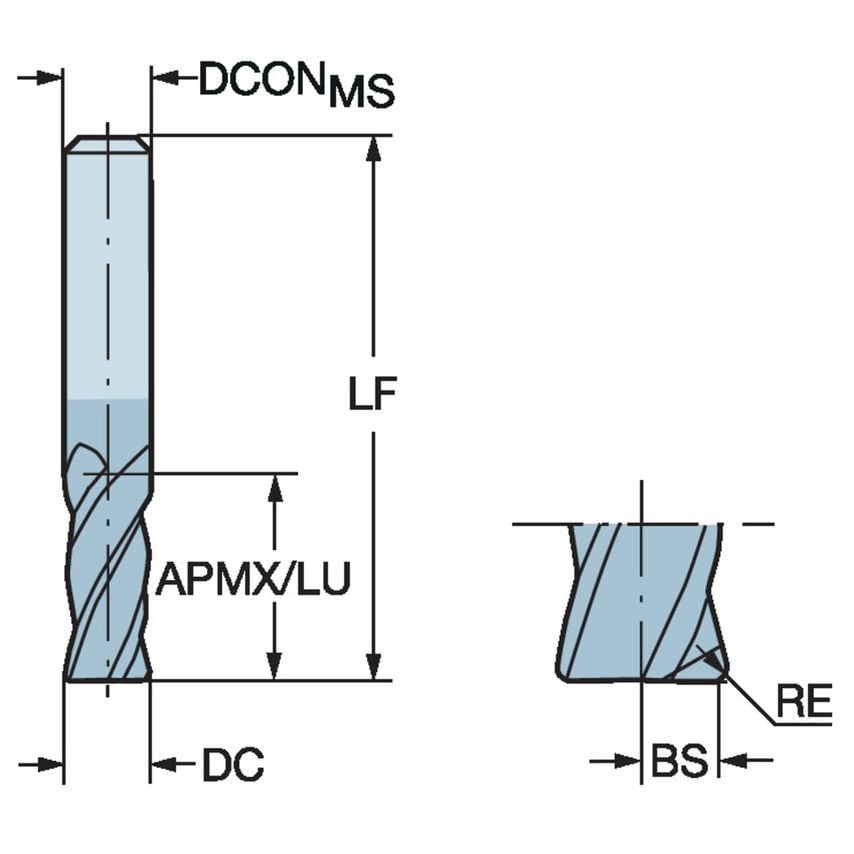

| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coolant Entry Style | Without Coolant |
| Maximum Depth of Cut | 12mm |
| Wiper Edge Length | 3.5mm |
| Functional Length | 58mm |
| Connection Diameter | 8mm |
| Usable Length | 12mm |
| Maximum Cutting Depth | 12mm |
| Cutting Diameter | 8mm |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1620 |
| Coating Process Type | PVD |
| Coating Type | TiAlN |
| Basic Standard Group | Coromant |
| MFR Part No. | 11561535 |
| Corner Radius | 0.5mm |
| CoroPak | 3.1 |
| Maximum Ramping Angle | 5\u00b0 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
