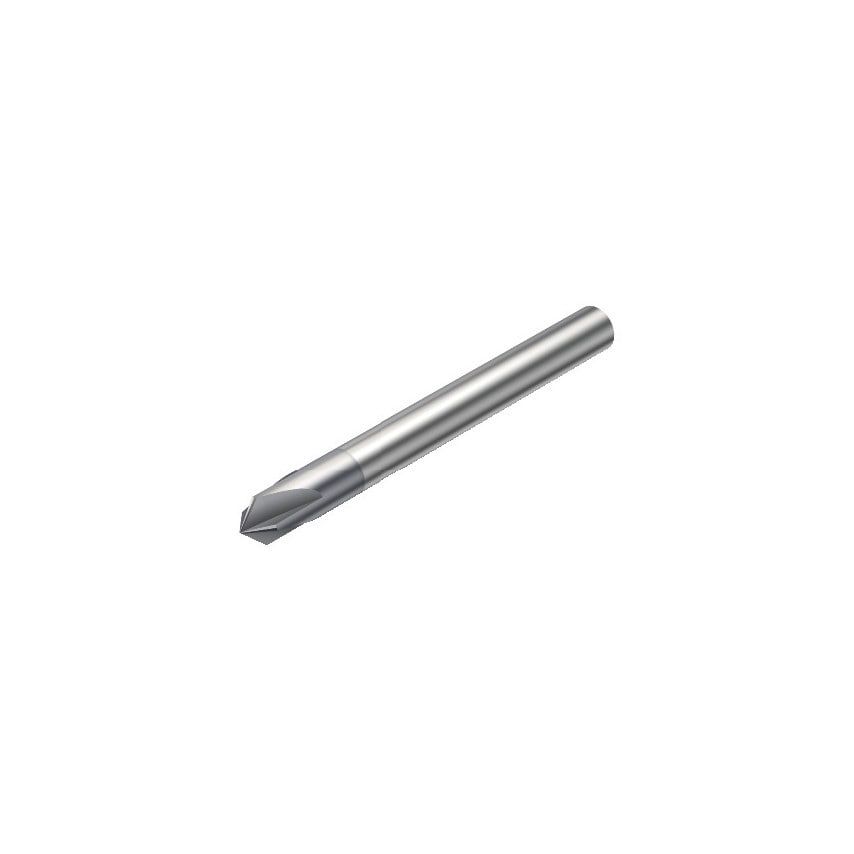

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1620 |
| Material | Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 121.7g |
| Body Diameter | 0.39in |
| Connection Diameter | 10mm |
| Maximum Depth of Cut | 7.35mm |
| Unit Measured | Metric |
| Tool Cutting Edge Angle | 60\u00b0 |
| MFR Part No. | 26259480 |
| Finish/Coating | TiAlN |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Maximum Cutting Diameter | 10mm |
| Coating Type | TiAlN |
| Rotational Speed Maximum | 80000 1/min |
| Coolant Entry Style | Without Coolant |
| Functional Length | 98.7mm |
| Cutting Diameter | 1.5mm |
| CoroPak | 12.2 |
| Maximum Cutting Depth | 7.35mm |
