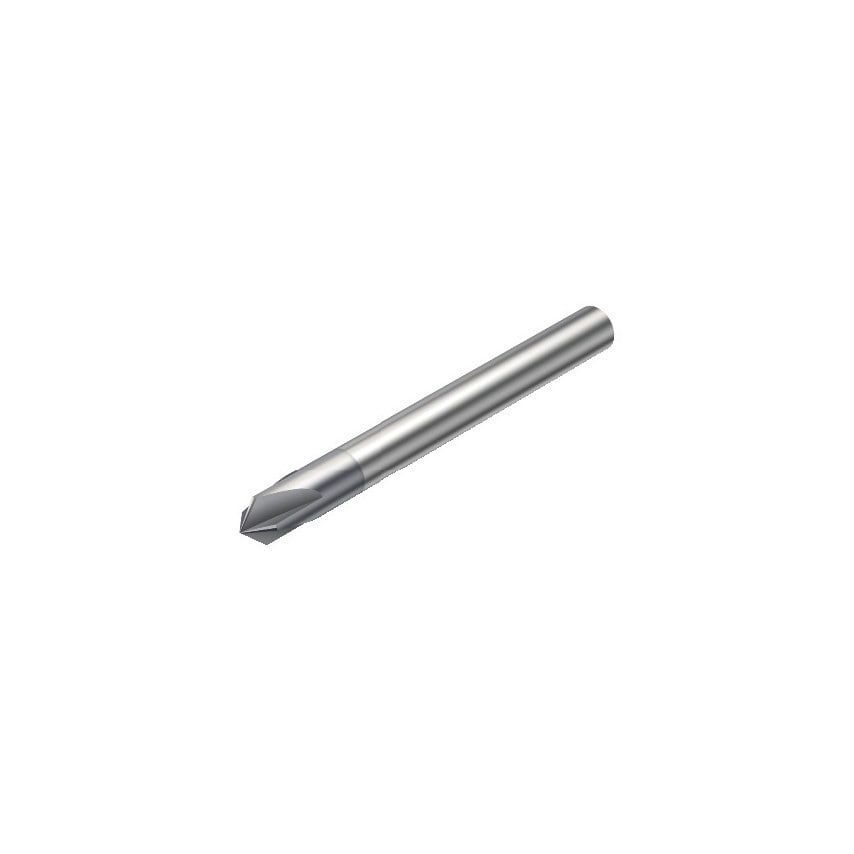

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1620 |
| Weight | 0.12kg |
| Connection Diameter | 25mm |
| Cutting Diameter | 1.5mm |
| MFR Part No. | 26259473 |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Maximum Cutting Depth | 4.25mm |
| Finish/Coating | PVD |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Tool Cutting Edge Angle | 45\u00b0 |
| Functional Length | 99.2mm |
| Maximum Depth of Cut | 4.25mm |
| Maximum Cutting Diameter | 10mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| Unit Measured | Metric |
| Standards Met | COROMANT |
| CoroPak | 12.2 |
