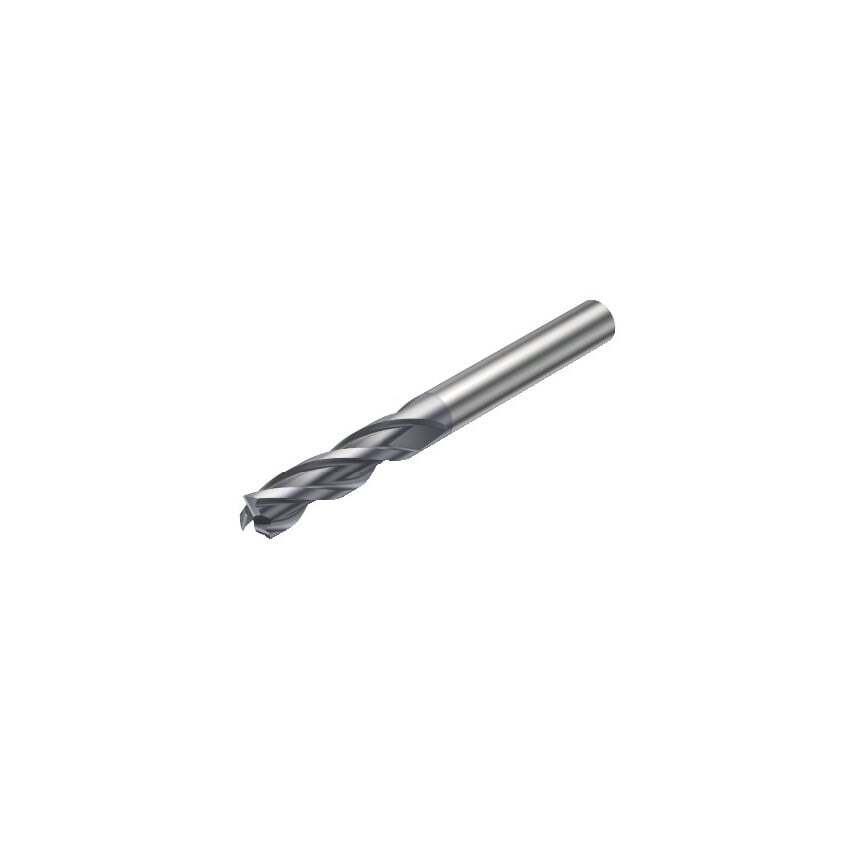

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Shank Type | Weldon |
| Cutting Diameter | 10mm |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Connection Diameter | 25mm |
| Finish/Coating | TiAlN |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 32mm |
| Functional Length | 100mm |
| Product Type | CoroMill Plura End Mill |
| Maximum Depth of Cut | 32mm |
| Center Cutting Capability | Yes |
| Coating Type | TiAlN |
| Maximum Ramping Angle | 7\u00b0 |
| Usable Length | 32mm |
| Grade | 1620 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 12.2 |
| MFR Part No. | 26259827 |
| Rotational Speed Maximum | 80000 1/min |
| Weight | 0.1kg |
