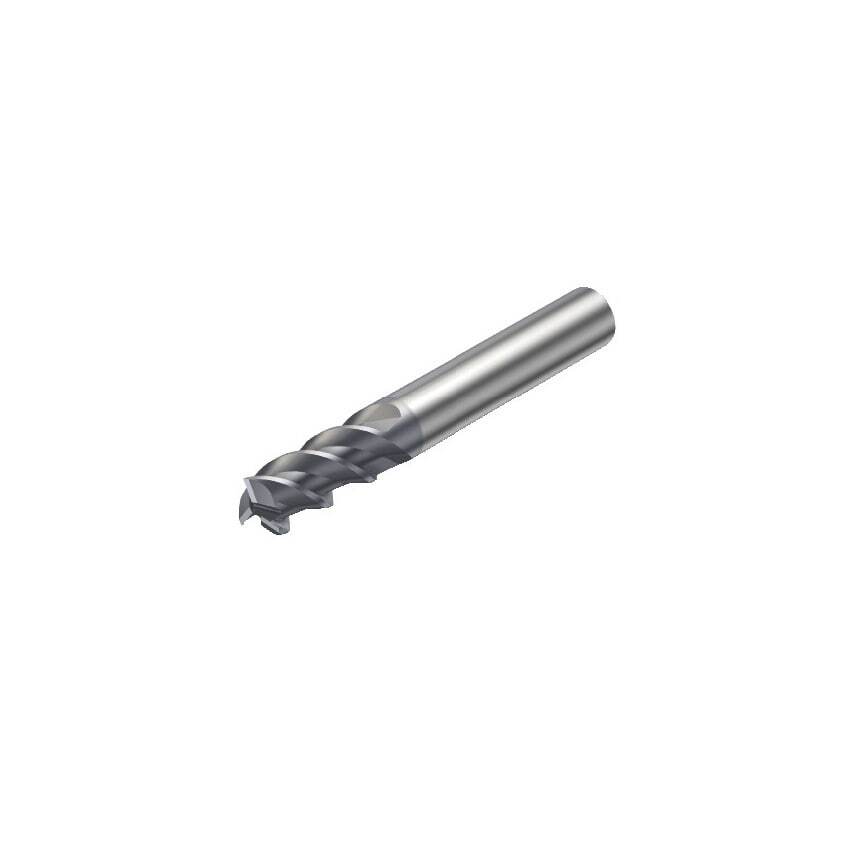

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| ISO Cutting Tool Material | Coated WC or Cermet |
| Material | Solid Carbide |
| Unit Measured | Metric |
| Product Type | CoroMill Plura End Mill |
| MFR Part No. | 26259836 |
| Standards Met | DIN 6527 L |
| Basic Standard Group | DIN 6527 L |
| Functional Length | 83mm |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 14mm |
| Maximum Cutting Depth | 22mm |
| Weight | 0.18kg |
| Coating Type | TiAlN |
| Shank Type | Cylindrical |
| Grade | 1620 |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Ramping Angle | 8\u00b0 |
| Center Cutting Capability | Yes |
| Finish/Coating | TiAlN |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Cutting Diameter | 14mm |
| Usable Length | 22mm |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 22mm |
