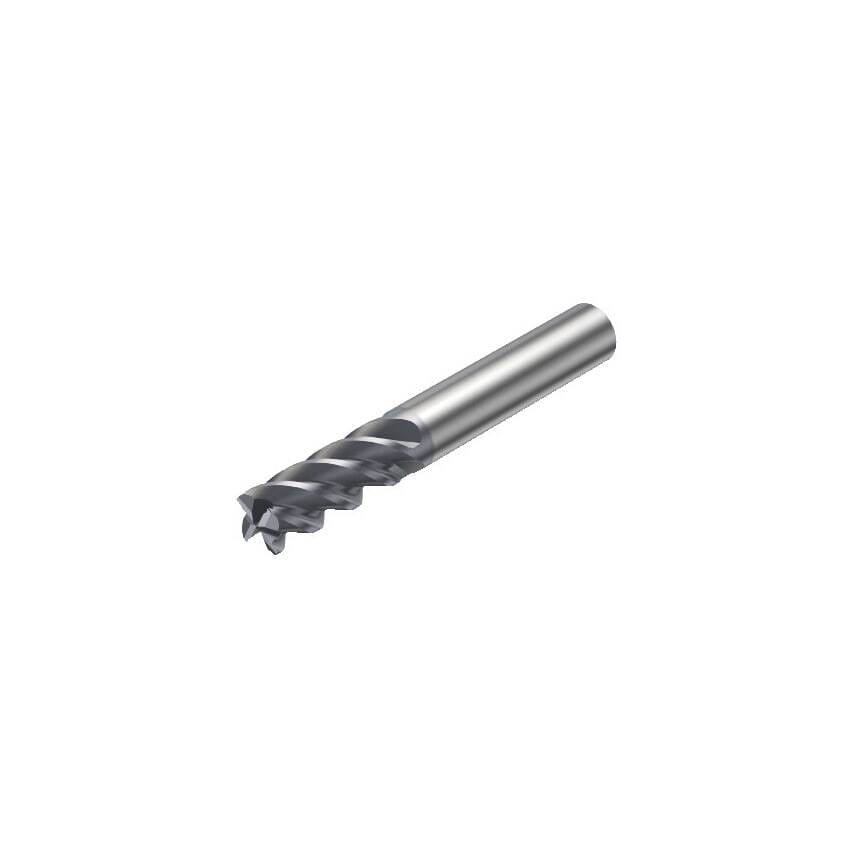

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Product Type | CoroMill Plura End Mill |
| CoroPak | 12.2 |
| Rotational Speed Maximum | 80000 1/min |
| Grade | 1630 |
| Functional Length | 83mm |
| Weight | 0.18kg |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 6527 L |
| Maximum Depth of Cut | 26mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Connection Diameter | 40mm |
| Maximum Ramping Angle | 5\u00b0 |
| Cutting Diameter | 14mm |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| Coating Process Type | PVD |
| Standards Met | DIN 6527 L |
| Shank Type | Weldon |
| Finish/Coating | TiAlN |
| Usable Length | 26mm |
| MFR Part No. | 26259899 |
| Maximum Cutting Depth | 26mm |
| Material | Carbide |
| Unit Measured | Metric |
