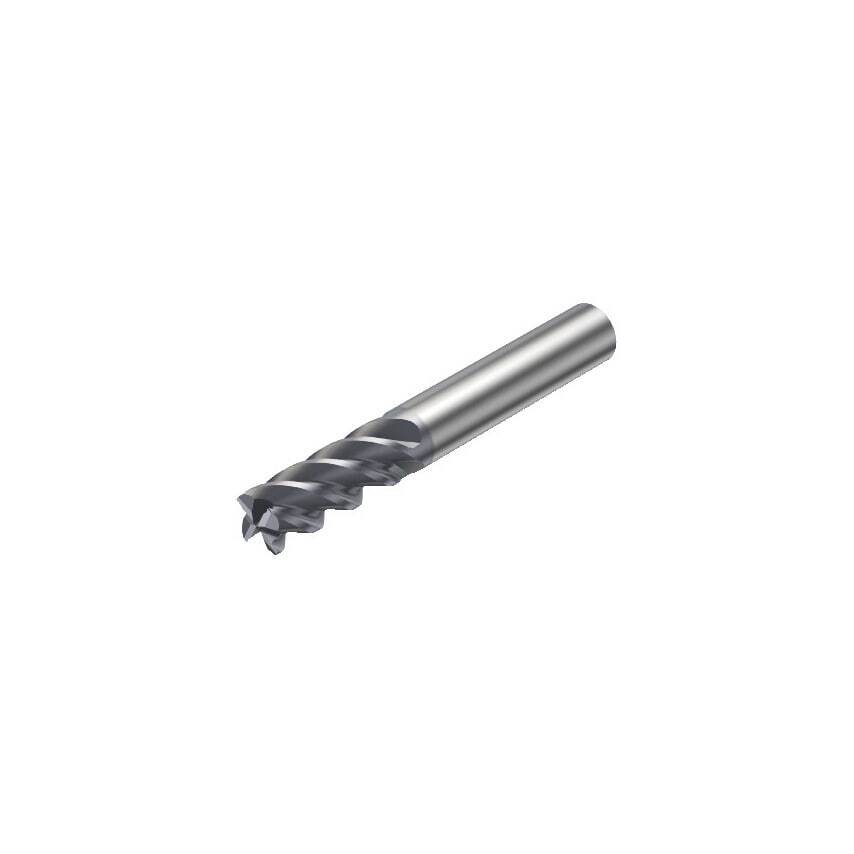

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Maximum Depth of Cut | 32mm |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | Yes |
| Connection Diameter | 18mm |
| Basic Standard Group | DIN 6527 L |
| Maximum Cutting Depth | 32mm |
| MFR Part No. | 26259889 |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Weight | 0.32kg |
| Finish/Coating | TiAlN |
| Standards Met | DIN 6527 L |
| Product Type | CoroMill Plura End Mill |
| Functional Length | 92mm |
| Usable Length | 32mm |
| Grade | 1630 |
| Maximum Ramping Angle | 5\u00b0 |
| Shank Type | Cylindrical |
| Cutting Diameter | 18mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 12.2 |
| Rotational Speed Maximum | 80000 1/min |
| Material | Solid Carbide |
