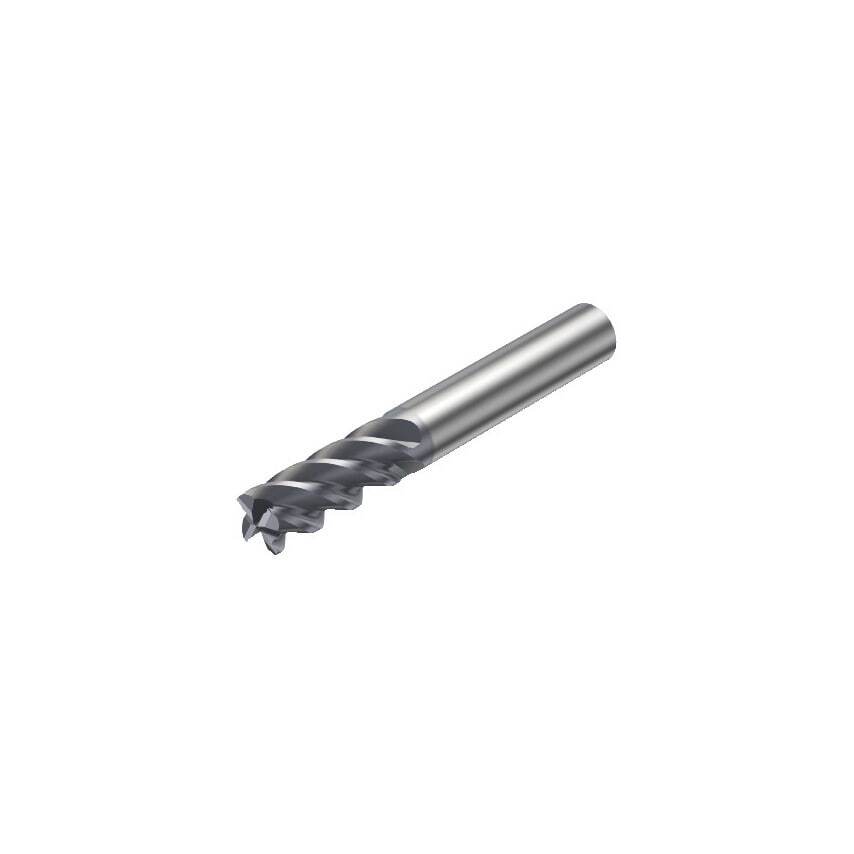

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1620 |
| Cutting Diameter | 16mm |
| Basic Standard Group | DIN 6527 L |
| Maximum Depth of Cut | 32mm |
| MFR Part No. | 26259877 |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Usable Length | 32mm |
| Maximum Cutting Depth | 32mm |
| Unit Measured | Metric |
| CoroPak | 12.2 |
| Shank Type | Cylindrical |
| Functional Length | 92mm |
| Product Type | CoroMill Plura End Mill |
| Coating Type | TiAlN |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Weight | 0.25kg |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Connection Diameter | 50mm |
| Material | Solid Carbide |
| Finish/Coating | TiAlN |
| Standards Met | DIN 6527 L |
| Rotational Speed Maximum | 80000 1/min |
