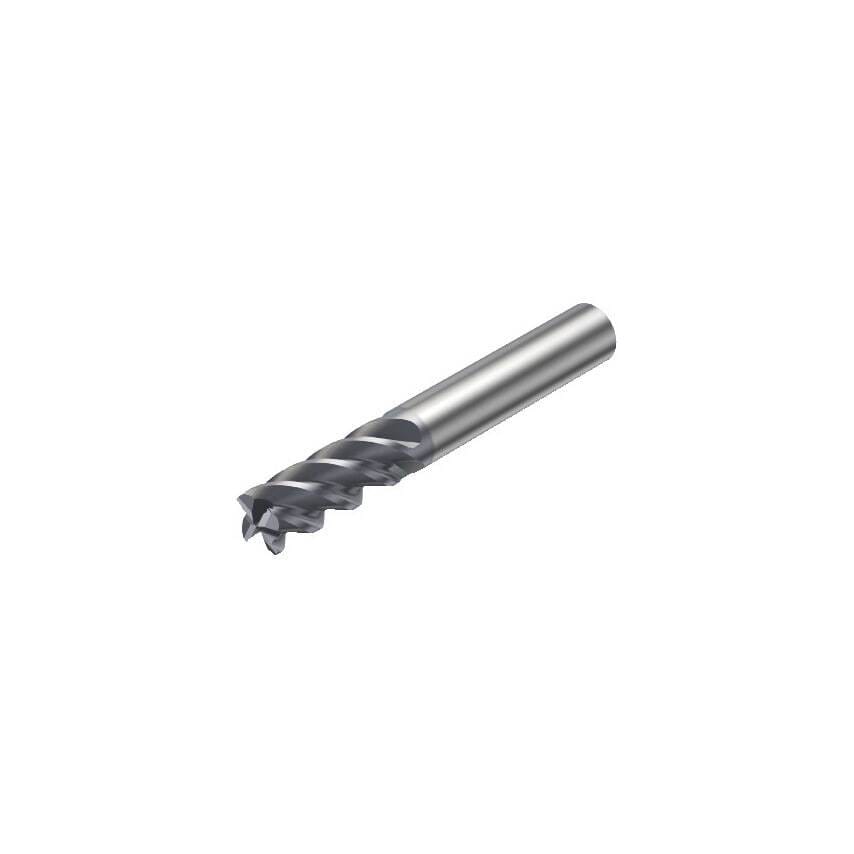

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Cutting Diameter | 18mm |
| MFR Part No. | 26259888 |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Shank Type | Cylindrical |
| Basic Standard Group | DIN 6527 L |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Usable Length | 32mm |
| Maximum Cutting Depth | 32mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Center Cutting Capability | Yes |
| Grade | 1620 |
| Finish/Coating | TiAlN |
| Connection Diameter | 63mm |
| Functional Length | 92mm |
| Standards Met | DIN 6527 L |
| Maximum Depth of Cut | 32mm |
| Product Type | CoroMill Plura End Mill |
| Maximum Ramping Angle | 5\u00b0 |
| Coolant Entry Style | Without Coolant |
| Weight | 0.32kg |
| CoroPak | 12.2 |
