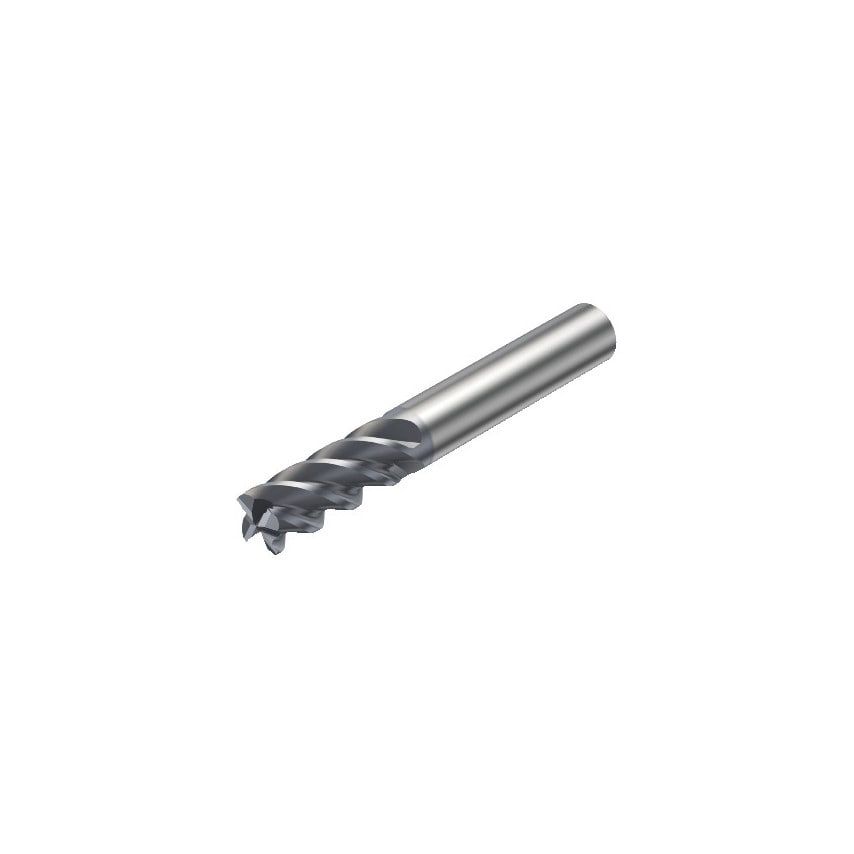

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Connection Diameter | 20mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Type | TiAlN |
| Coolant Entry Style | Without Coolant |
| Material | Solid Carbide |
| Cutting Diameter | 20mm |
| Coating Process Type | PVD |
| Functional Length | 104mm |
| Basic Standard Group | DIN 6527 L |
| MFR Part No. | 26259891 |
| Product Type | CoroMill Plura End Mill |
| Rotational Speed Maximum | 80000 1/min |
| Finish/Coating | TiAlN |
| Usable Length | 38mm |
| Center Cutting Capability | Yes |
| CoroPak | 12.2 |
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1630 |
| Maximum Depth of Cut | 38mm |
| Maximum Cutting Depth | 38mm |
| Standards Met | DIN 6527 L |
| Weight | 0.44kg |
| Shank Type | Cylindrical |
