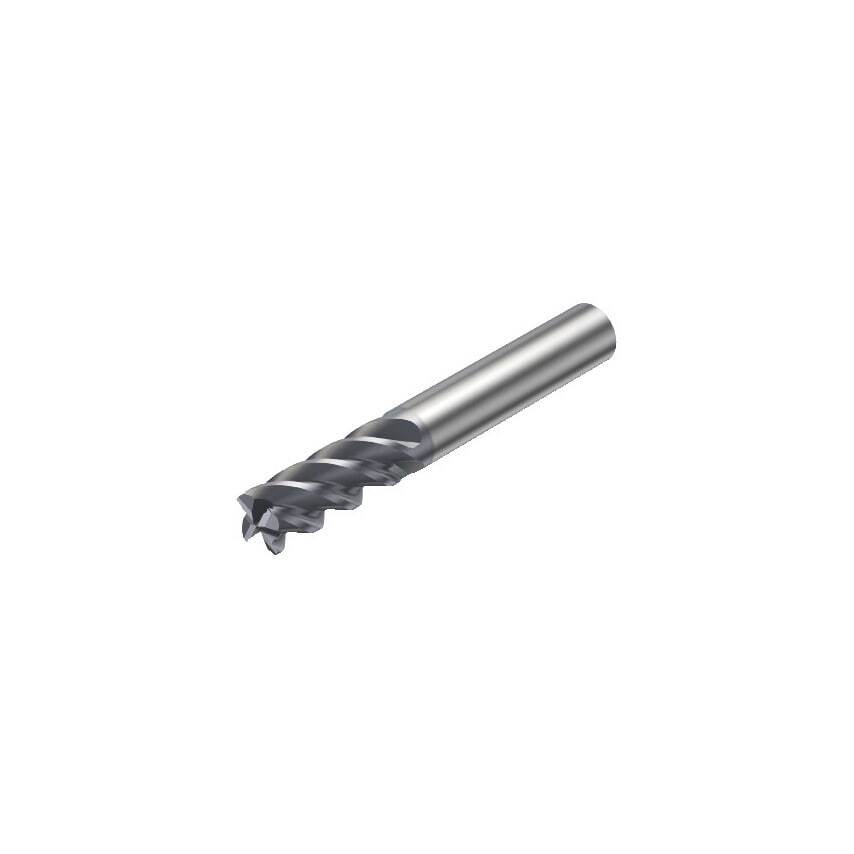

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Weight | 84g |
| Maximum Cutting Depth | 22mm |
| Basic Standard Group | DIN 6527 L |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | Yes |
| Cutting Diameter | 10mm |
| Coating Process Type | PVD |
| Shank Type | Cylindrical |
| Unit Measured | Metric |
| Grade | 1620 |
| Usable Length | 22mm |
| Coolant Entry Style | Without Coolant |
| Connection Diameter | 10mm |
| Maximum Depth of Cut | 22mm |
| Product Type | CoroMill Plura End Mill |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Finish/Coating | TiAlN |
| MFR Part No. | 26259882 |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Rotational Speed Maximum | 80000 1/min |
| Standards Met | DIN 6527 L |
| Functional Length | 72mm |
