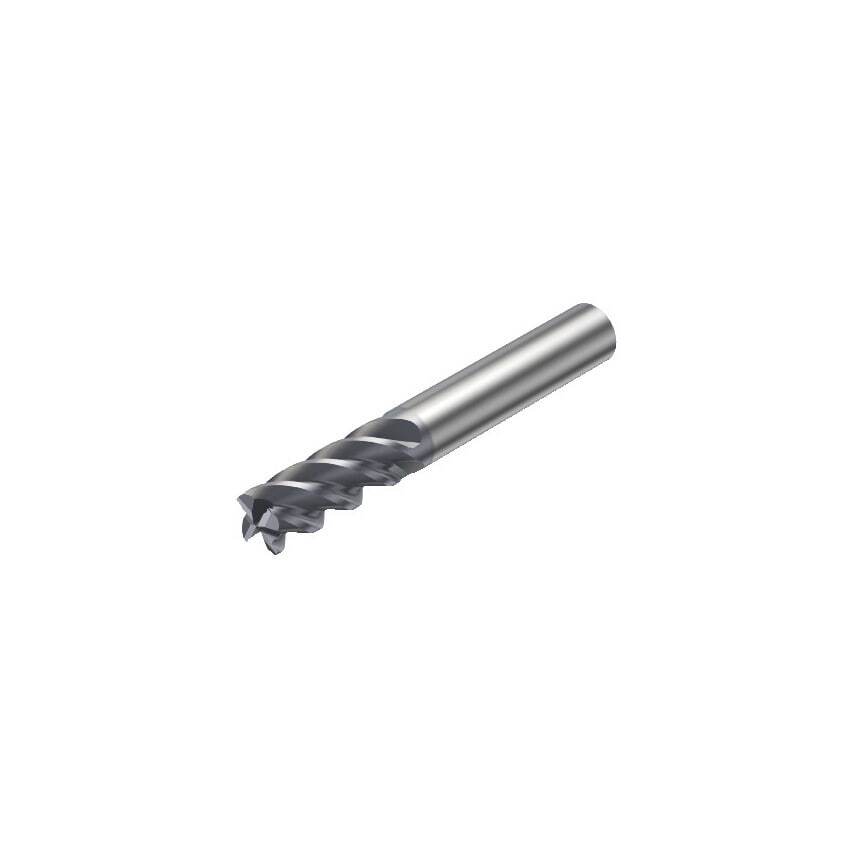

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Connection Diameter | 14mm |
| Weight | 0.18kg |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 26259887 |
| Maximum Depth of Cut | 26mm |
| Standards Met | DIN 6527 L |
| Grade | 1630 |
| Basic Standard Group | DIN 6527 L |
| Material | Solid Carbide |
| Coating Type | TiAlN |
| Maximum Cutting Depth | 26mm |
| Through Hole Function Property | Yes |
| Functional Length | 83mm |
| Finish/Coating | TiAlN |
| Shank Type | Cylindrical |
| Product Type | CoroMill Plura End Mill |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Usable Length | 26mm |
| Cutting Diameter | 14mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
