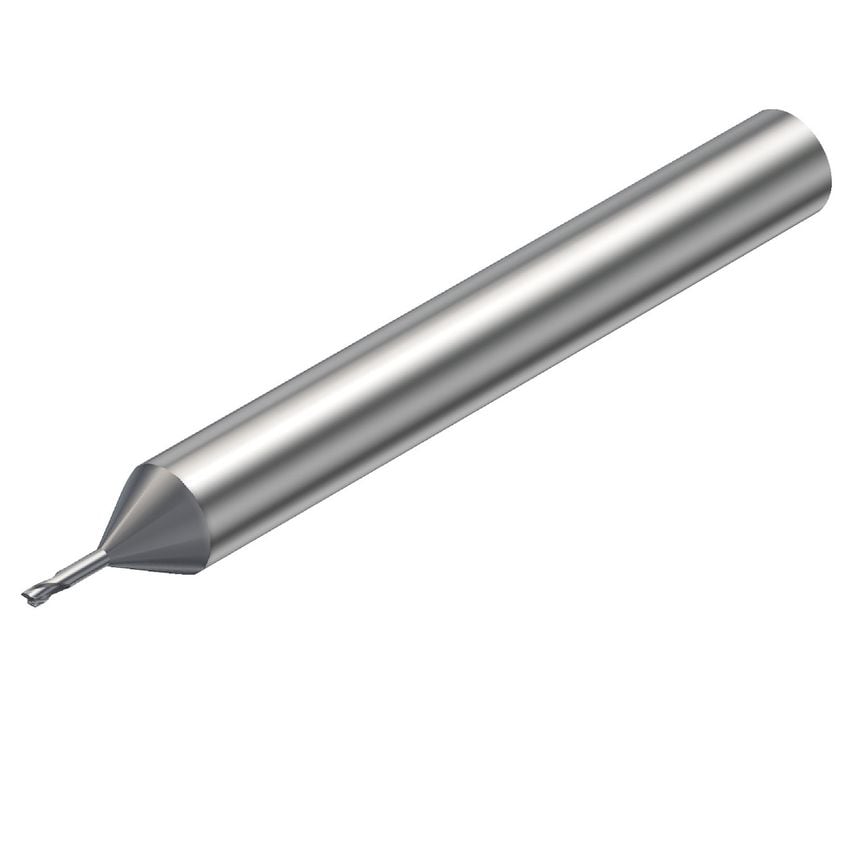

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | 1620 |
| Unit Measured | Metric |
| Rotational Speed Maximum | 80000 1/min |
| Coating Process Type | PVD |
| Product Type | End Mills |
| Basic Standard Group | Coromant |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 0.5mm |
| Functional Length | 57mm |
| Material | Solid Carbide |
| Usable Length | 5mm |
| Finish/Coating | TiAlN |
| Maximum Cutting Depth | 0.5mm |
| Cutting Diameter | 30.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Weight | 30g |
| Standards Met | COROMANT |
| MFR Part No. | 11555633 |
| CoroPak | 70 |
| Maximum Ramping Angle | 5\u00b0 |
| Center Cutting Capability | 6.48 |
| Connection Diameter | 1mm |
| Coating Type | TiAlN |
