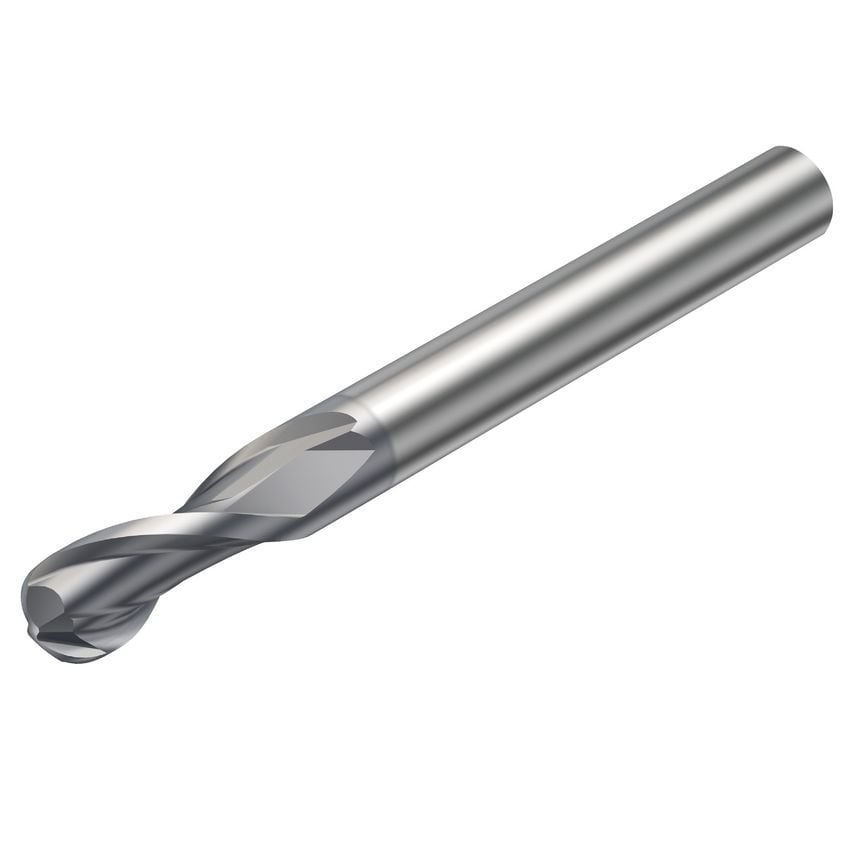

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 3\u00b0 |

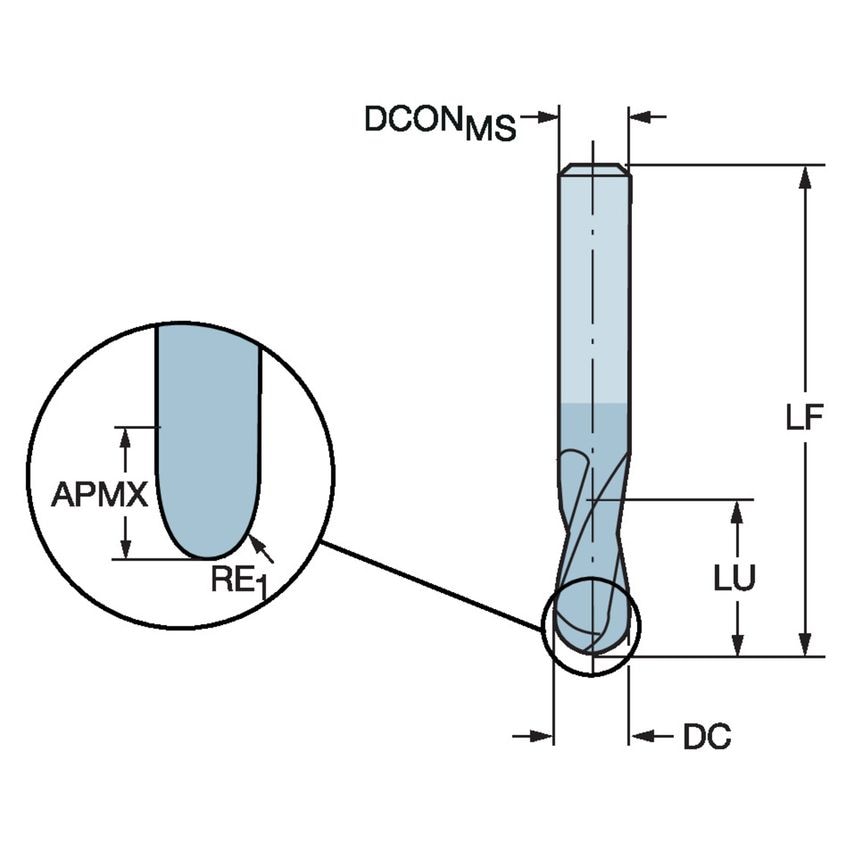

| Cutter Diameter | 5mm |
| MFR Part No. | 11885016 |
| Basic Standard Group | Coromant |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Cutting Diameter | 38mm |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Coating Type | TiAlN |
| Usable Length | 6mm |
| Functional Length | 80mm |
| Coating Process Type | PVD |
| Grade | 1620 |
| Connection Diameter | 1mm |
| CoroPak | 75 |
| Body Half Taper Angle | 10\u00b0 |
| Corner Radius | 2.5mm |
| Rotational Speed Maximum | 80000 1/min |
