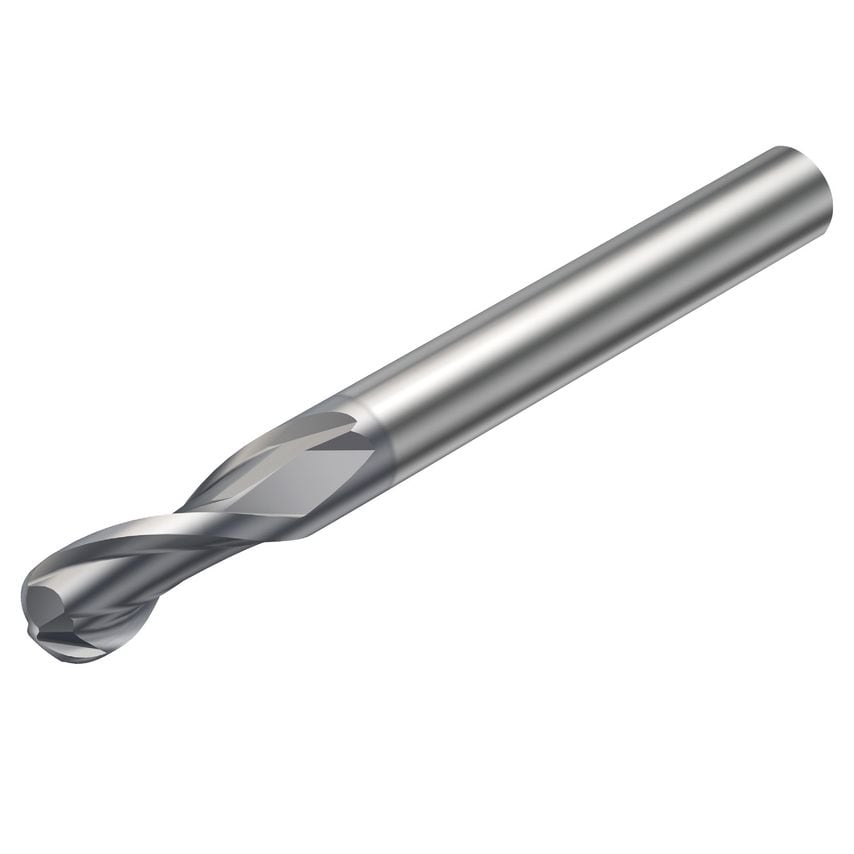

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

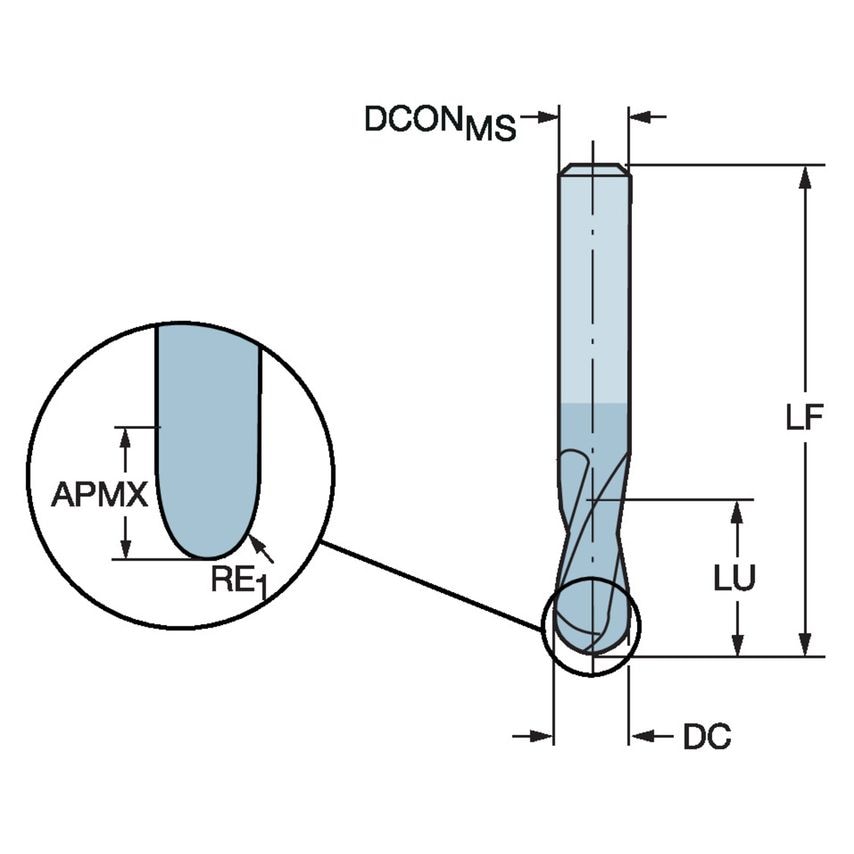

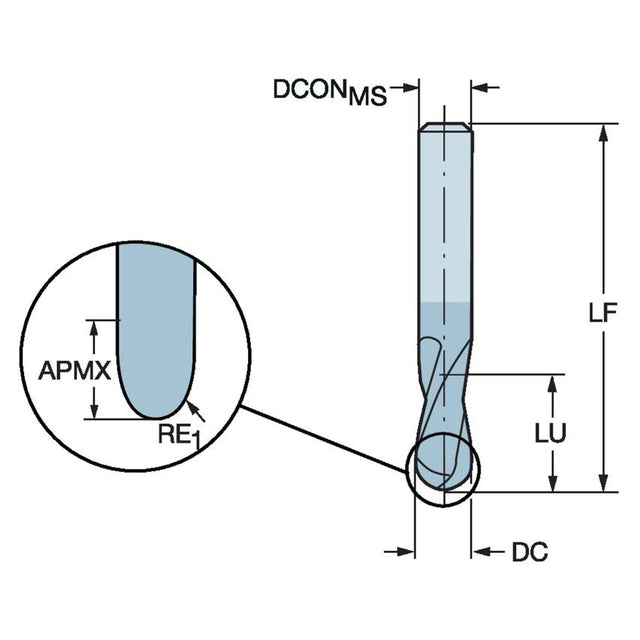

| Unit Measured | Metric |
| Corner Radius | 1.25mm |
| Cutting Diameter | 44.7mm |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 11527434 |
| Coating Process Type | PVD |
| Maximum Ramping Angle | 3\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| CoroPak | 83 |
| Body Half Taper Angle | 10\u00b0 |
| Functional Length | 57mm |
| Rotational Speed Maximum | 80000 1/min |
| Through Hole Function Property | Yes |
| Connection Diameter | 0.8mm |
| Basic Standard Group | Coromant |
| Grade | 1610 |
| Usable Length | 3mm |
| Cutter Diameter | 2.5mm |
| Coating Type | TiAlN |
