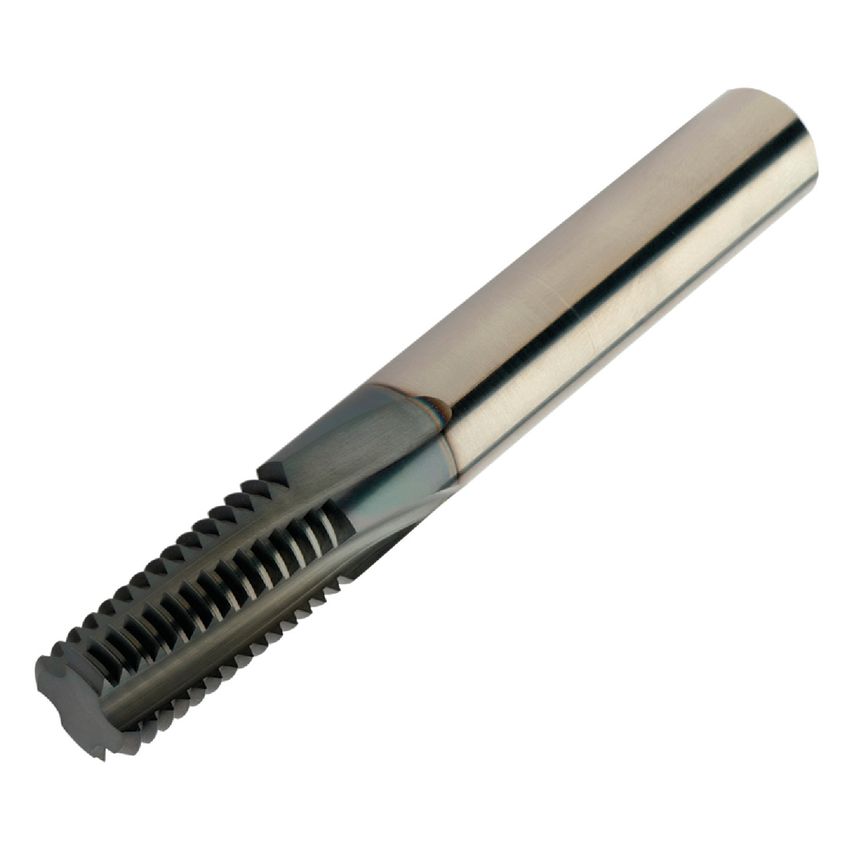

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coolant Entry Style | 1 |
| Shank Type | Cylindrical |
| Thread Pitch | 0.75mm |
| Thread Form Type | M60 |
| Connection Diameter | 1mm |
| Basic Standard Group | Coromant |
| Grade | 1630 |
| Material | Carbide |
| CoroPak | 4.2 |
| Coating Type | TiAlN |
| Thread Type | Internal |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 12mm |
| Maximum Cutting Diameter | 6mm |
| Finish/Coating | TiAlN |
| Cutting Diameter | 38mm |
| Through Hole Function Property | Yes |
| Standards Met | COROMANT |
| Usable Length | 12mm |
| Functional Length | 57mm |
| Coating Process Type | PVD |
| MFR Part No. | 11798533 |
| Maximum Cutting Depth | 12mm |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
