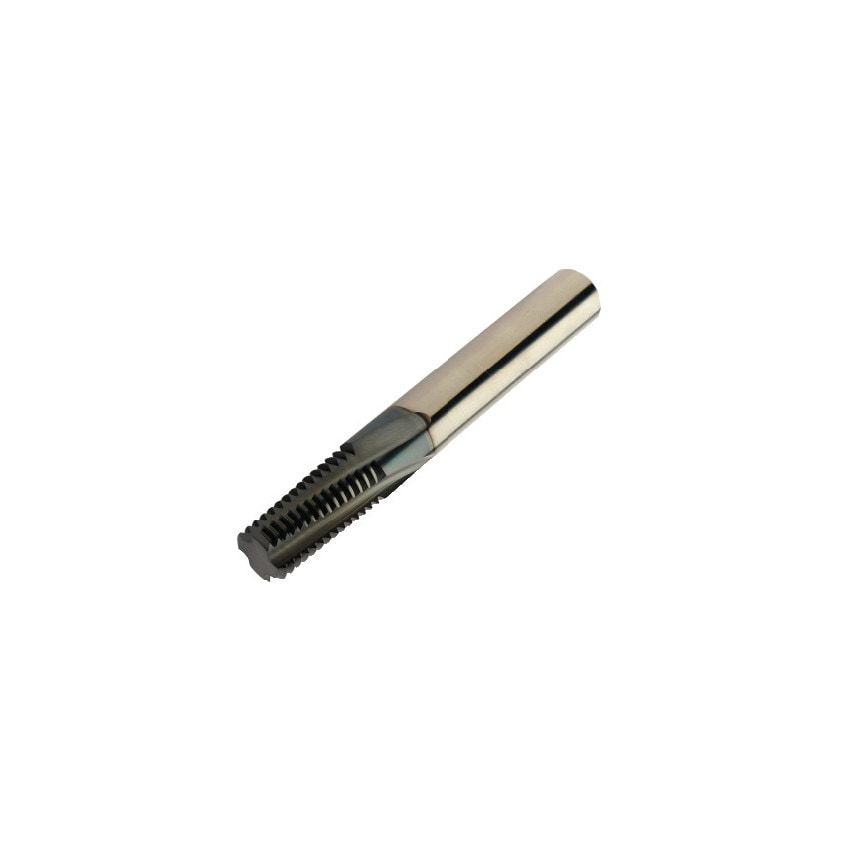

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26304505 |
| Coating Type | TiAlN |
| Standards Met | COROMANT |
| Material | Solid Carbide |
| Grade | 1630 |
| Coating Process Type | PVD |
| Body Diameter | 0.24in |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 12.2 |
| Connection Diameter | 15.75mm |
| Thread Form Type | M60 |
| Usable Length | 9.5mm |
| Maximum Cutting Diameter | 6mm |
| Maximum Depth of Cut | 8.8mm |
| Maximum Cutting Depth | 8.8mm |
| Shank Type | Cylindrical |
| Coolant Entry Style | 1 |
| Unit Measured | Metric |
| Thread Type | Internal |
| Countersink Angle | 90\u00b0 |
| Cutting Diameter | 6mm |
| Finish/Coating | TiAlN |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Basic Standard Group | Coromant |
| Thread Pitch | 0.7mm |
| Through Hole Function Property | Yes |
