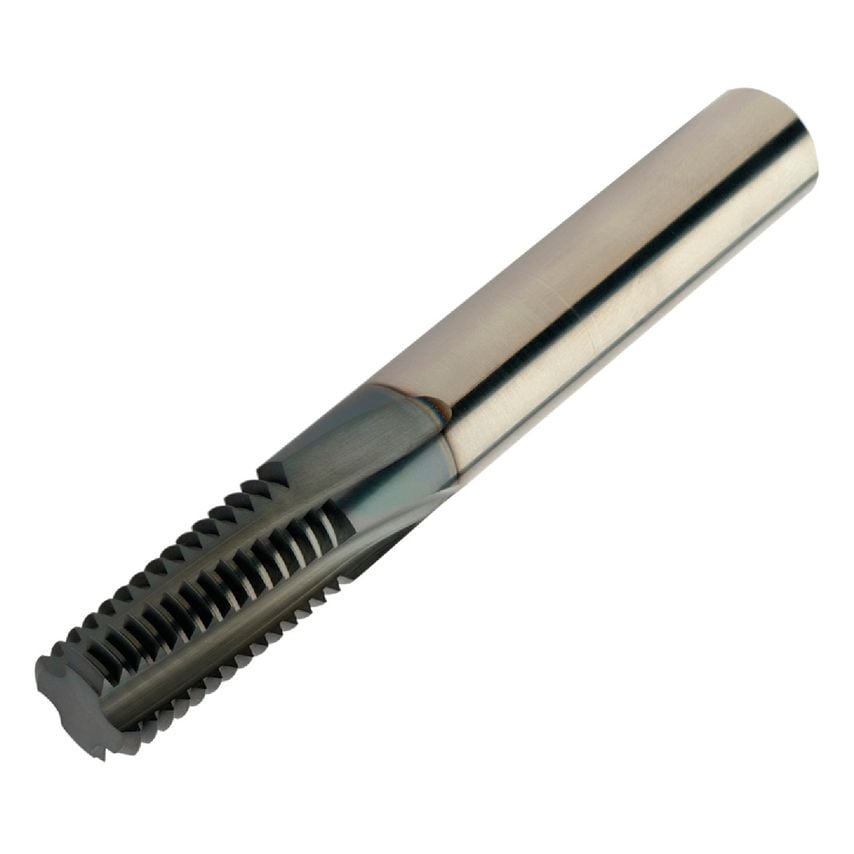

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Grade | 1630 |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Thread Type | Internal |
| Finish/Coating | TiAlN |
| Coating Process Type | PVD |
| CoroPak | 4.2 |
| Thread Form Type | M60 |
| Maximum Cutting Diameter | 4.8mm |
| Maximum Cutting Depth | 10mm |
| Maximum Depth of Cut | 10mm |
| Shank Type | Cylindrical |
| Connection Diameter | 6mm |
| Cutting Diameter | 50.8mm |
| Coating Type | TiAlN |
| Thread Pitch | 0.5mm |
| Usable Length | 10mm |
| Coolant Entry Style | 1 |
| MFR Part No. | 11798522 |
| Functional Length | 57mm |
| Rotational Speed Maximum | 80000 1/min |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
