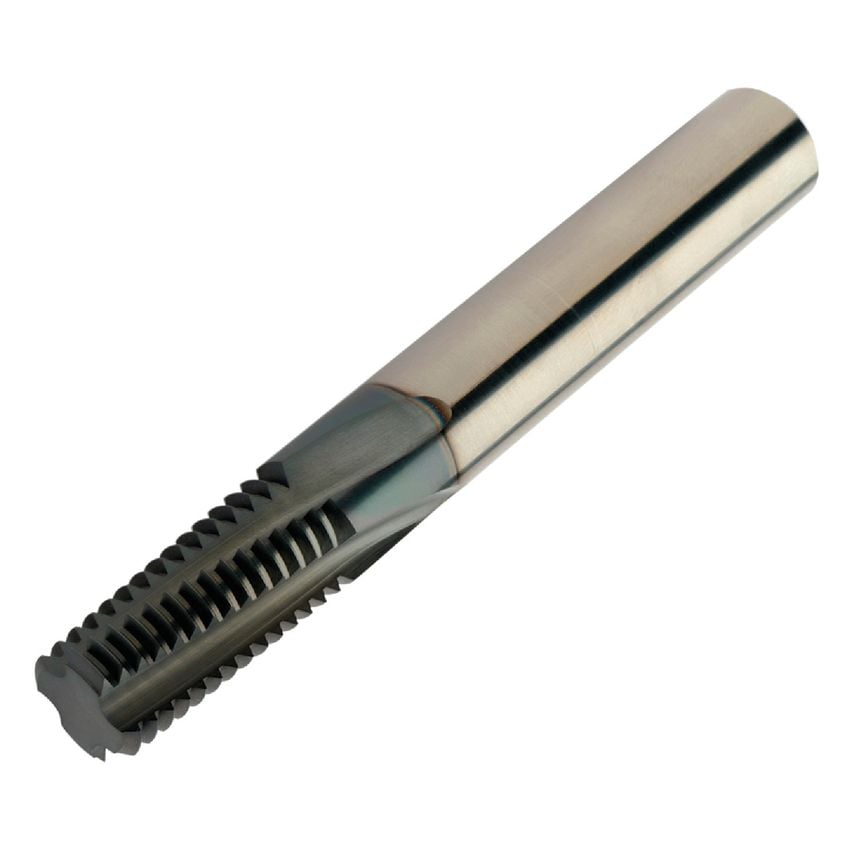

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Coolant Entry Style | 1 |
| Maximum Cutting Diameter | 4.5mm |
| CoroPak | 4.2 |
| Cutting Diameter | 48.8mm |
| Material | Solid Carbide |
| Shank Type | Cylindrical |
| Finish/Coating | TiAlN |
| Maximum Cutting Depth | 0.51in |
| Coating Process Type | PVD |
| Rotational Speed Maximum | 80000 1/min |
| Thread Pitch | 1mm |
| Thread Type | Internal |
| Unit Measured | Metric |
| Functional Length | 57mm |
| Thread Form Type | M60 |
| Standards Met | COROMANT |
| Basic Standard Group | Coromant |
| Coating Type | TiAlN |
| Usable Length | 13mm |
| Maximum Depth of Cut | 13mm |
| MFR Part No. | 11798544 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1630 |
| Connection Diameter | 6mm |
