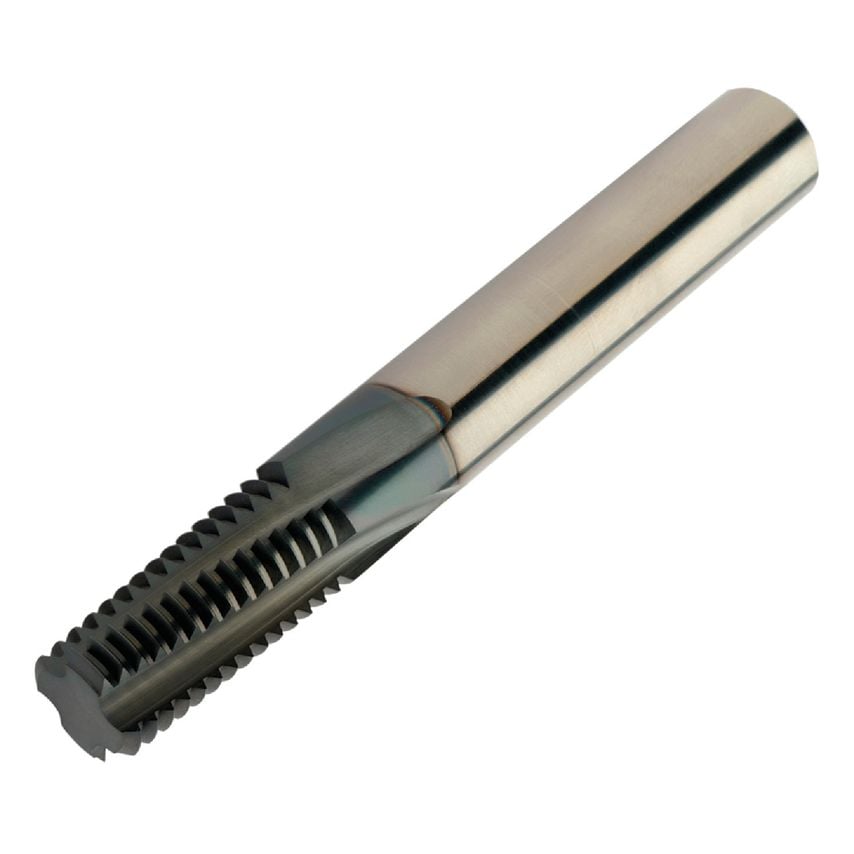

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 80000 1/min |
| Thread Type | Internal |
| Standards Met | COROMANT |
| Finish/Coating | TiAlN |
| Basic Standard Group | Coromant |
| Grade | 1630 |
| Maximum Cutting Diameter | 12mm |
| Thread Form Type | M60 |
| Material | Solid Carbide |
| MFR Part No. | 11798592 |
| Functional Length | 83mm |
| Weight | 0.13kg |
| Usable Length | 22.5mm |
| Coating Process Type | PVD |
| CoroPak | 4.2 |
| Connection Diameter | 32mm |
| Cutting Diameter | 32mm |
| Unit Measured | Metric |
| Coolant Entry Style | 1 |
| Thread Pitch | 1.5mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Depth of Cut | 22.5mm |
| Maximum Cutting Depth | 22.5mm |
| Coating Type | TiAlN |
| Shank Type | Cylindrical |
